Splunk Basics – Did you SIEM?

原创

漫路修行

微痕鉴远

2025年12月28日 22:54 广东

Initial Triage

Start a basic search across the index using your custom source type web_traffic, using the following query:

Search query: index=main sourcetype=web_traffic

Visualizing the Logs Timeline

Let’s chart the total event count over time, grouped by day, to determine the number of events captured per day. This will help us in identifying the day that received an abnormal number of logs.

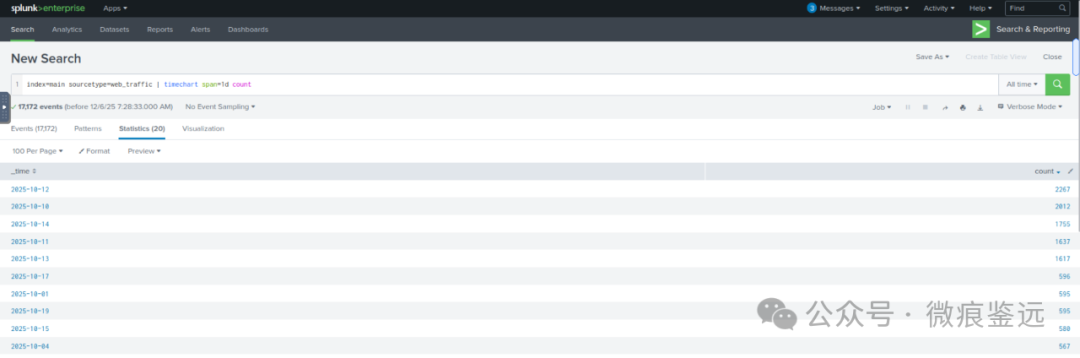

Search query:index=main sourcetype=web_traffic | timechart span=1d count

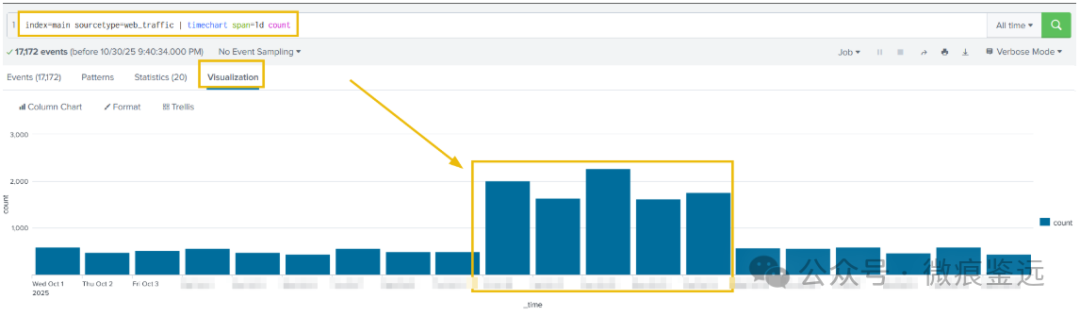

The above results are now showing the event logs captured per day. This could be interesting, as we can see some days getting a high volume of logs. We can also click on the Visualization tab to examine the graph for better representation, as shown below:

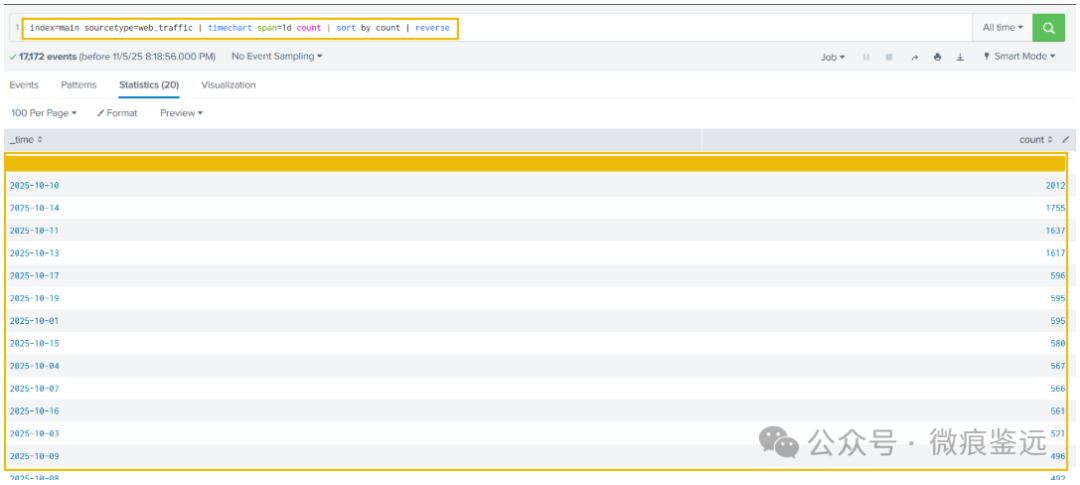

We can append the reverse function at the end to display the result in descending order, showing the day with the maximum number of events at the beginning.

Search query:index=main sourcetype=web_traffic | timechart span=1d count | sort by count | reverse

Anomaly Detection

Now that we have examined the days with the abnormal logs, using the table and the graph, let’s use the same search query to examine various fields to hunt for suspicious values. We need to go back to the Events tab to continue.

User Agent

Let’s click on the user_agent field in the left panel, as shown below. It will show us the details about the user agents captured so far.

client_ip

The second field we will examine is the client_ip, which contains the IP addresses of the clients accessing the web server. We can immediately see one particular IP address standing out, which we will investigate further.

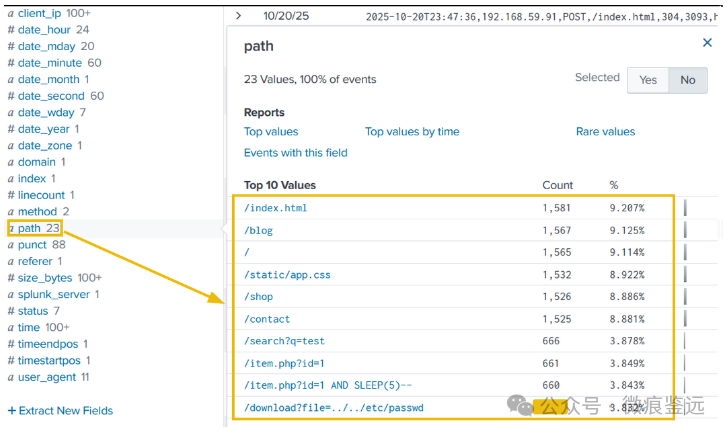

path

The third field we will examine is path, which contains the URI being requested and accessed by the client IPs. The results shown below clearly indicate some attacks worth investigating.

Filtering out Benign Values

We know King Malhare’s bunnies use scripts and tools, not standard browsers. Let’s filter out all standard traffic.

Let’s exclude common legitimate user agents. The following query will remove legitimate user agents from the results and only show the suspicious ones, which we will further investigate.

Search query: index=main sourcetype=web_traffic user_agent!=*Mozilla* user_agent!=*Chrome* user_agent!=*Safari* user_agent!=*Firefox*

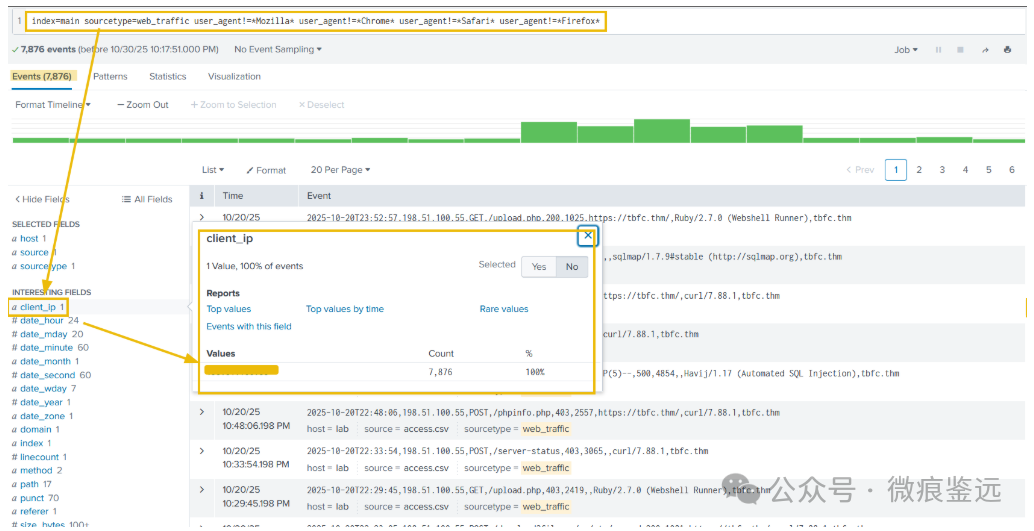

The output reveals interesting results. By clicking on the client_ip field we can see a single IP address being responsible for all the suspicious user agents. Let’s note that down for further investigation and fill in the <REDACTED> portions of the upcoming queries with that IP.

Narrowing Down Suspicious IPs

In real-world scenarios, we often encounter various IP addresses constantly attempting to attack our servers. To narrow down on the IP addresses that do not send requests from common desktop or mobile browsers, we can use the following query:

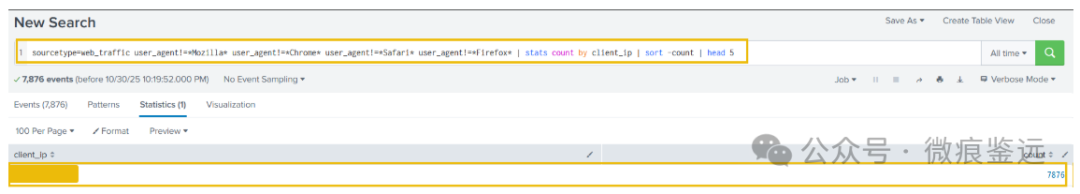

Search query:sourcetype=web_traffic user_agent!=*Mozilla* user_agent!=*Chrome* user_agent!=*Safari* user_agent!=*Firefox* | stats count by client_ip | sort -count | head 5

The result confirms the top IP used by the Bandit Bunnies. In the search query, the - in the sort -count part will sort the result by count in reverse order, it’s the same as using the reverse function. Let’s pick this IP address and filter out to see what the footprints of the activities captured.

Tracing the Attack Chain

We will now focus on the selected attacker IP to trace their steps chronologically, confirming the use of multiple tools and payloads. Don’t forget to replace <REDACTED> with the IP we noted down previously.

Reconnaissance (Footprinting)

We will start searching for the initial probing of exposed configuration files using the query below:

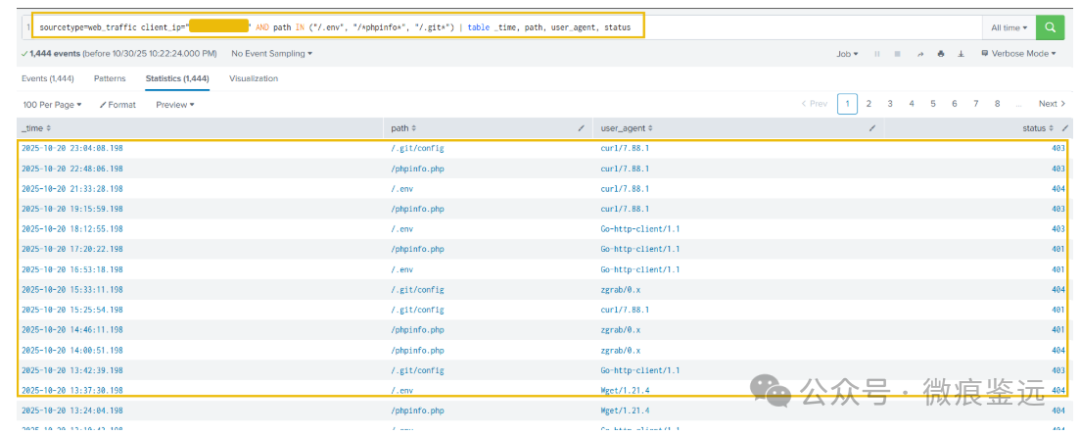

Search query: sourcetype=web_traffic client_ip="<REDACTED>" AND path IN ("/.env", "/*phpinfo*", "/.git*") | table _time, path, user_agent, status

The result confirms the attacker used low-level tools (curl, wget) and was met with 404/403/401 status codes.

Enumeration (Vulnerability Testing)

Search for common path traversal and open redirect vulnerabilities.

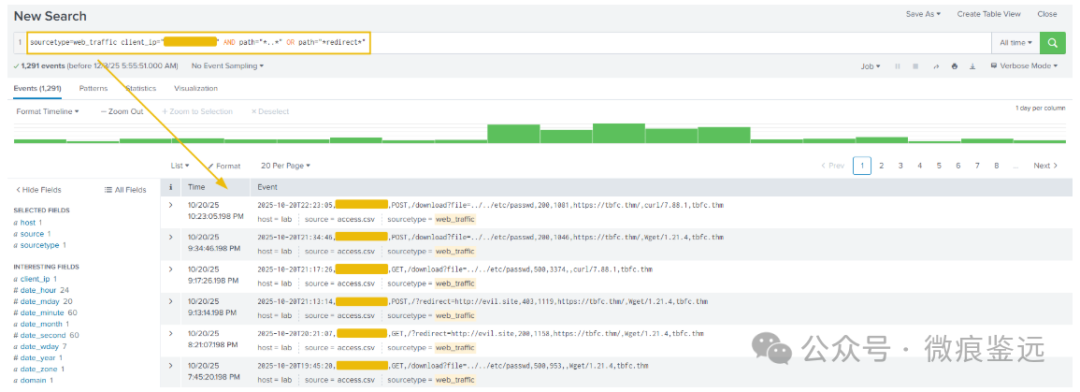

Search query: sourcetype=web_traffic client_ip="<REDACTED>" AND path="*..*" OR path="*redirect*"

The output shows the resources the attacker is trying to access. Let’s update the search query to get the count of the resources requested by the attacker. This search query is filtering on the paths that contain either ../../ or the term redirect in it, as shown below. This is done to look for footprints of path traversal attempts (../../). To, we need to update in the search query to escape the characters like ..\/..\/.

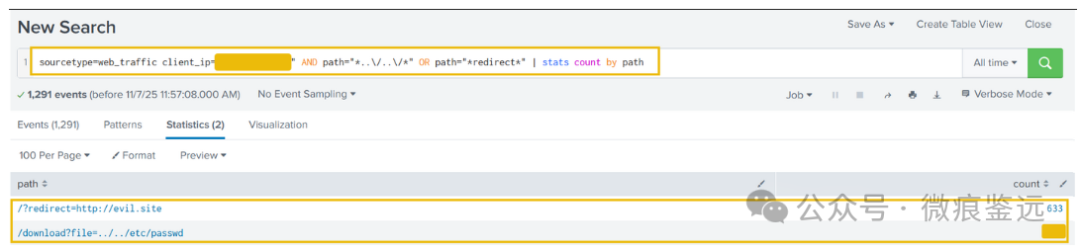

Search query: sourcetype=web_traffic client_ip="<REDACTED>" AND path="*..\/..\/*" OR path="*redirect*" | stats count by path

Quite interesting results. Reveals attempts to read system files (../../*), showing the attacker moved beyond simple scanning to active vulnerability testing.

SQL Injection Attack

Find the automated attack tool and its payload by using the query below:

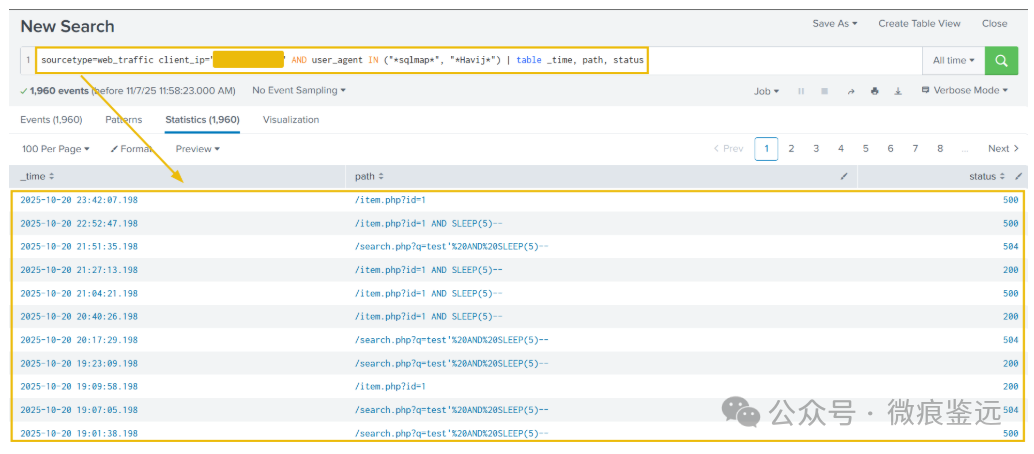

Search query: sourcetype=web_traffic client_ip="<REDACTED>" AND user_agent IN ("*sqlmap*", "*Havij*") | table _time, path, status

Above results confirms the use of known SQL injection and specific attack strings like SLEEP(5). A 504 status code often confirms a successful time-based SQL injection attack.

Exfiltration Attempts

Search for attempts to download large, sensitive files (backups, logs). We can use the query below:

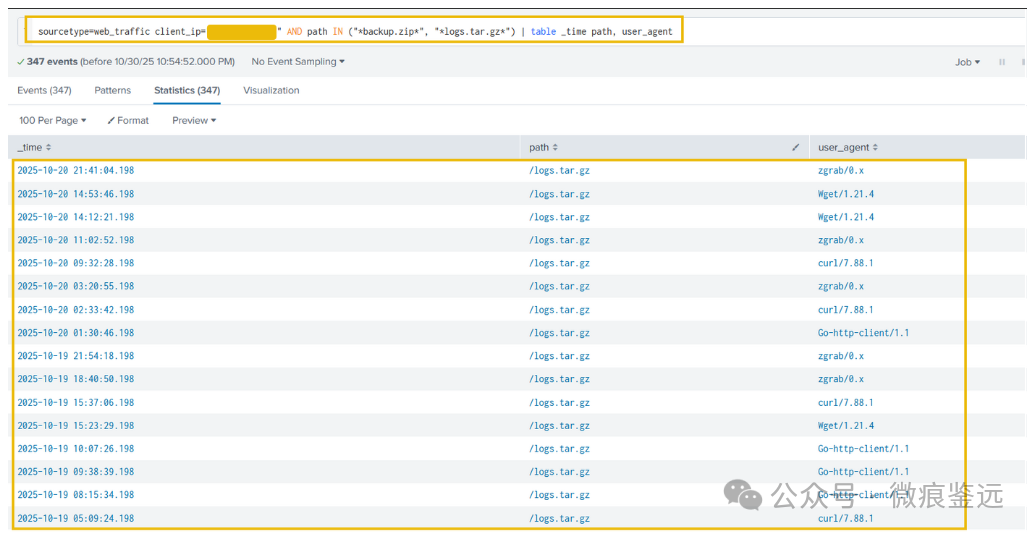

Search query: sourcetype=web_traffic client_ip="<REDACTED>" AND path IN ("*backup.zip*", "*logs.tar.gz*") | table _time path, user_agent

The results indicate the attacker was exfiltrating large chunks of compressed log files using tools like curl, zgrab, and more. We can confirm the details about these connections in the firewall logs.

Ransomware Staging & RCE

Requests for sensitive archives like /logs.tar.gz and /config indicate the attacker is gathering data for double-extortion. In the logs, we identified some requests related to bunnylock and shell.php. Let’s use the following query to see what those search queries are about.

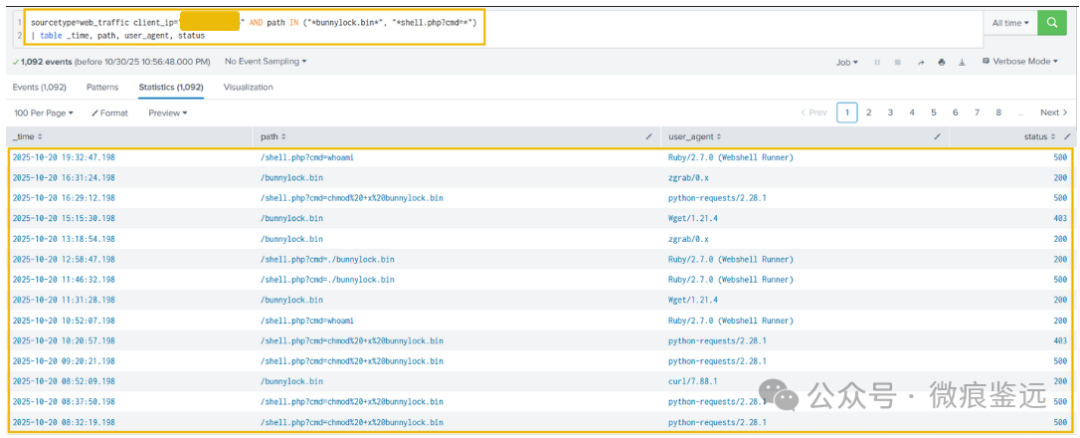

Search query:sourcetype=web_traffic client_ip="<REDACTED>" AND path IN ("*bunnylock.bin*", "*shell.php?cmd=*") | table _time, path, user_agent, status

Above results clearly confirm a successful webshell. The attacker has gained full control over the web server and is also able to run commands. This type of attack is called Remote code Execution (RCE). The execution of /shell.php?cmd=./bunnylock.bin indicates a ransomware like program executed on the server.

Correlate Outbound C2 Communication

We pivot the search to the firewall_logs using the Compromised Server IP (10.10.1.5) as the source and the attacker IP as the destination.

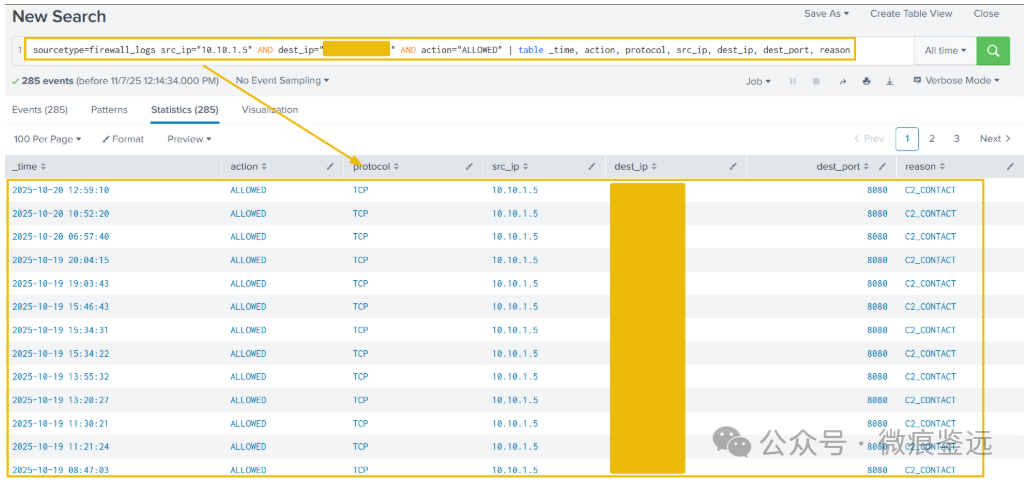

Search query:sourcetype=firewall_logs src_ip="10.10.1.5" AND dest_ip="<REDACTED>" AND action="ALLOWED" | table _time, action, protocol, src_ip, dest_ip, dest_port, reason

This query proves the server immediately established an outbound connection to the attacker’s C2 IP on the suspicious DEST_PORT. The ACTION=ALLOWED and REASON=C2_CONTACT fields confirm the malware communication channel was active.

Volume of Data Exfiltrated

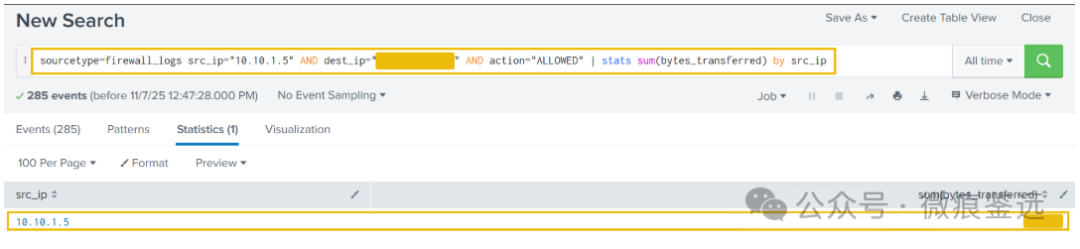

We can also use the sum function to calculate the sum of the bytes transferred, using the bytes_transferred field, as shown below:

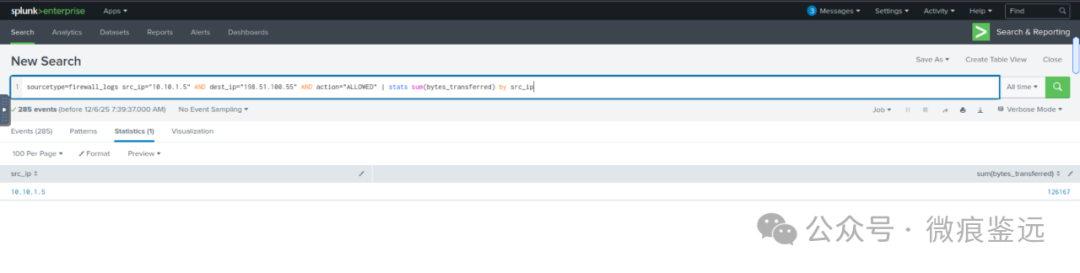

Search Query: sourcetype=firewall_logs src_ip="10.10.1.5" AND dest_ip="<REDACTED>" AND action="ALLOWED" | stats sum(bytes_transferred) by src_ip

The results show a hugh volume of data transferred from the compromised webserver to C2 server.

Conclusion

• Identity found:

  The attacker was identified via the highest volume of malicious web traffic originating from the external IP.

• Intrusion vector:

  The attack followed a clear progression in the web logs (sourcetype=web_traffic).

• Reconnaissance:

  Probes were initiated via cURL/Wget, looking for configuration files (/.env) and testing path traversal vulnerabilities.

• Exploitation:

  The use of SQLmap user agents and specific payloads (SLEEP(5)) confirmed the successful exploitation phase.

• Payload delivery:

  The Action on Objective was established by the final successful execution of the command cmd=./bunnylock.bin via the webshell.

• C2 confirmation:

  The pivot to the firewall logs (sourcetype=firewall_logs) proved the post-exploitation activity. The internal, compromised server (SRC_IP: 10.10.1.5) established an outbound C2 connection to the attacker’s IP.

练习：

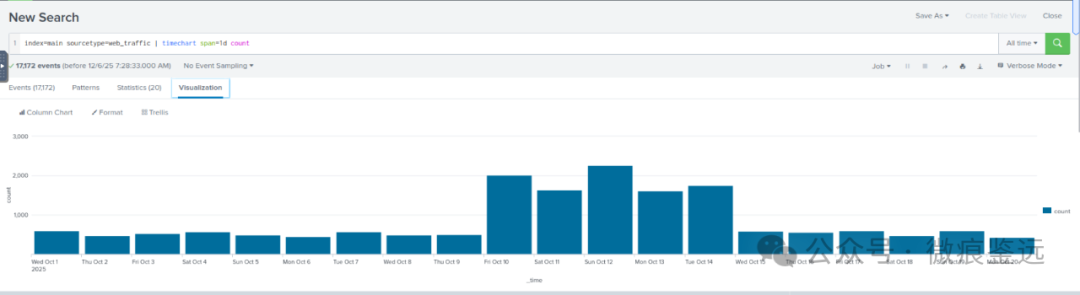

让我们绘制事件总数随时间变化的图表，并按天分组，以确定每天捕获的事件数量。这将有助于我们找出日志数量异常高的日期。

 index=main sourcetype=web_traffic | timechart span=1d count

我们可以在末尾添加 reverse 函数，按降序显示结果，将事件数量最多的一天显示在最前面。

 index=main sourcetype=web_traffic | timechart span=1d count | sort by count | reverse

What is the attacker IP found attacking and compromising the web server?

index=main sourcetype=web_traffic user_agent!=*Mozilla* user_agent!=*Chrome* user_agent!=*Safari* user_agent!=*Firefox*

198.51.100.55

Which day was the peak traffic in the logs? (Format: YYYY-MM-DD)

2025-10-12

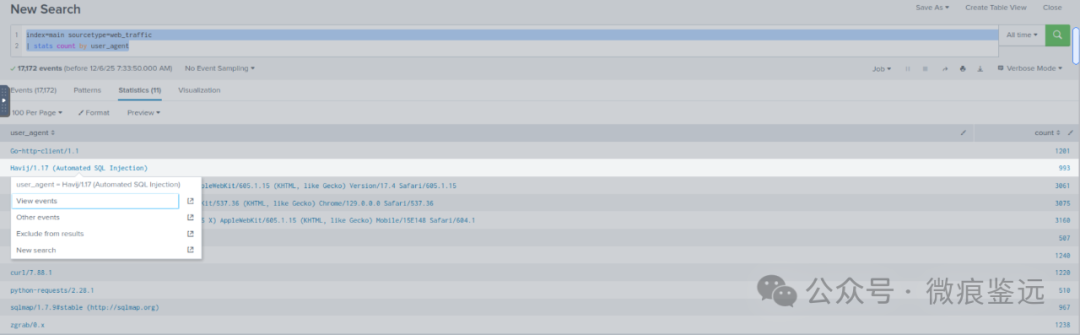

What is the count of Havij user_agent events found in the logs?

index=main sourcetype=web_traffic| stats count by user_agent

993

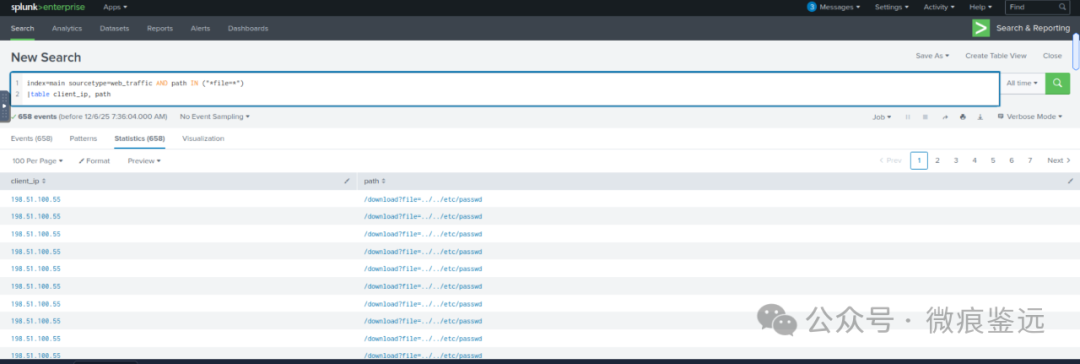

How many path traversal attempts to access sensitive files on the server were observed?

index=main sourcetype=web_traffic AND path IN ("*file=*") |table client_ip, path

658

Examine the firewall logs. How many bytes were transferred to the C2 server IP from the compromised web server?

sourcetype=firewall_logs src_ip="10.10.1.5" AND dest_ip="198.51.100.55" AND action="ALLOWED" | stats sum(bytes_transferred) by src_ip

126167

---
