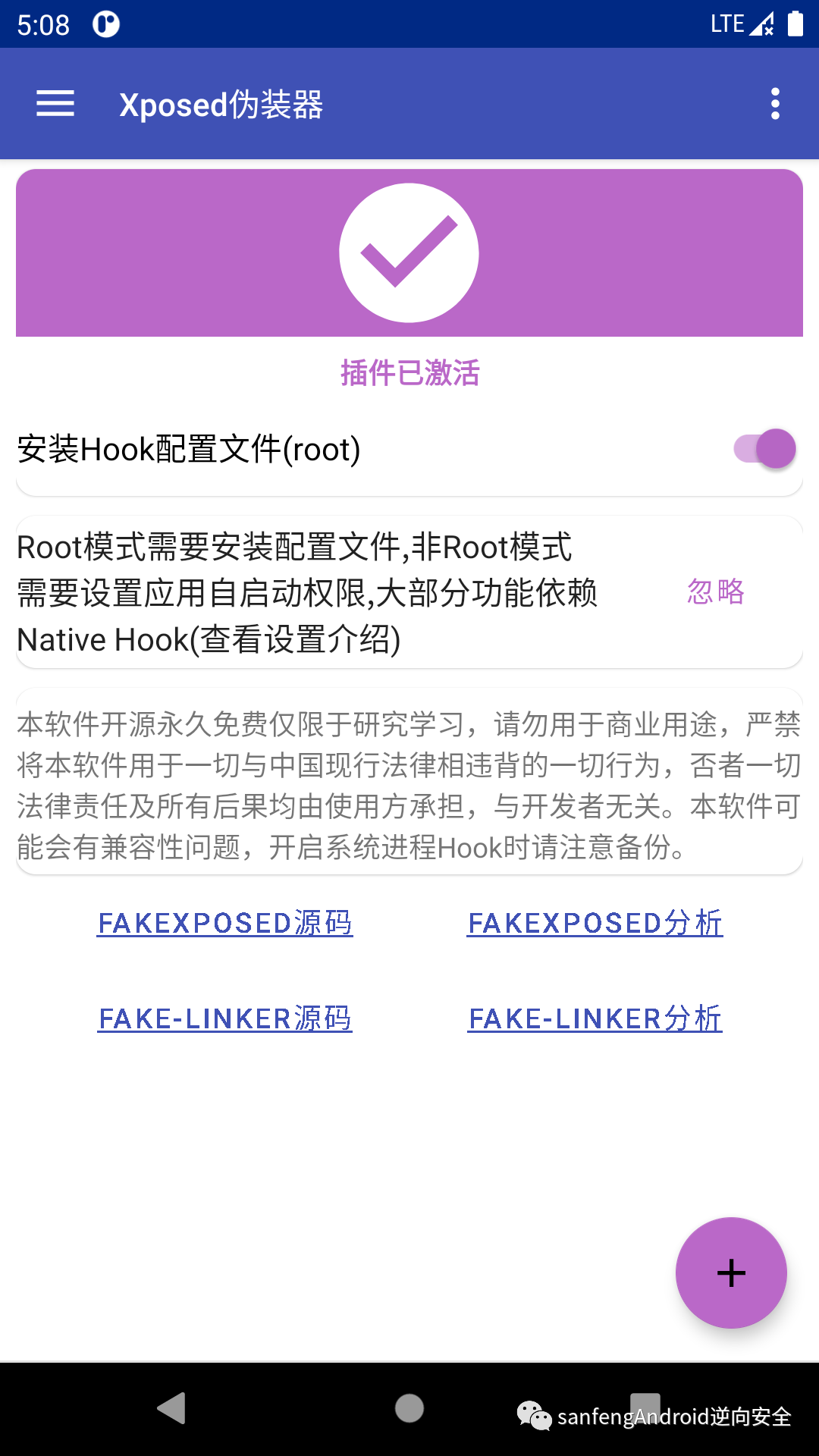

FakeXposed[1]
一个通用多功能的 Xposed 隐藏器，采用 Native 与 Java 结合来做到双向屏蔽检测，提供高度自由化为每个应用配置不同属性。它不仅仅局限于屏蔽 Xposed 检测，还提供更多更加高级的功能，如 maps 文件自定义屏蔽各种检测、完整的文件重定向功能、访问权限控制、JNI 方法监控、动态符号查找屏蔽 dlsym 等等，还可以提供给其它模块在进程内动态添加或修改配置。开源地址 https://github.com/sanfengAndroid/FakeXposed[2]
原理简要介绍
Native Hook使用我的另一开源项目 fake-linker[3]，Java Hook使用Xposed框架，大部分功能都是由Native Hook来完成，Xposed不限于原版Xposed、EdXposed、VirtualXposed等等- 内部提供
类、堆栈类、应用、环境变量、全局系统属性、Android Global属性、Runtime.exec拦截、文件访问/重定向等、符号拦截，各种属性的隐藏和修改，下面我将简单介绍一些原理，代码都是基于 Android 最新源码主分支，旧分支一些变化不是太大自行分析即可

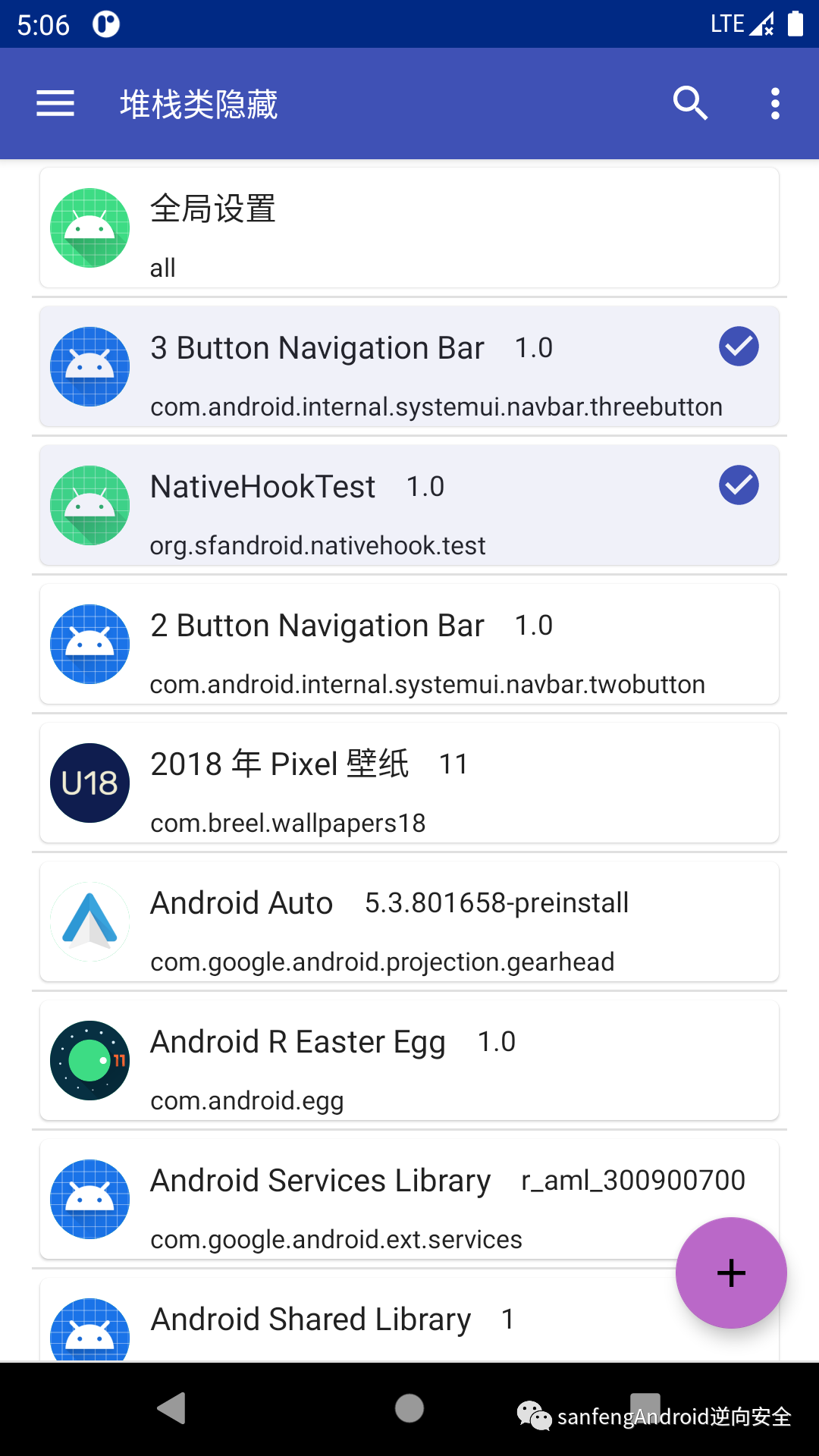

类/堆栈类隐藏
- Hook
Class.forName()、ClassLoader.loadClass()、Throwable.getStackTrace()方法，判断隐藏类加载则抛出异常或删除该元素。目前我在测试EdXposed中只有部分情况会走该回调，可能框架处理了有关部分

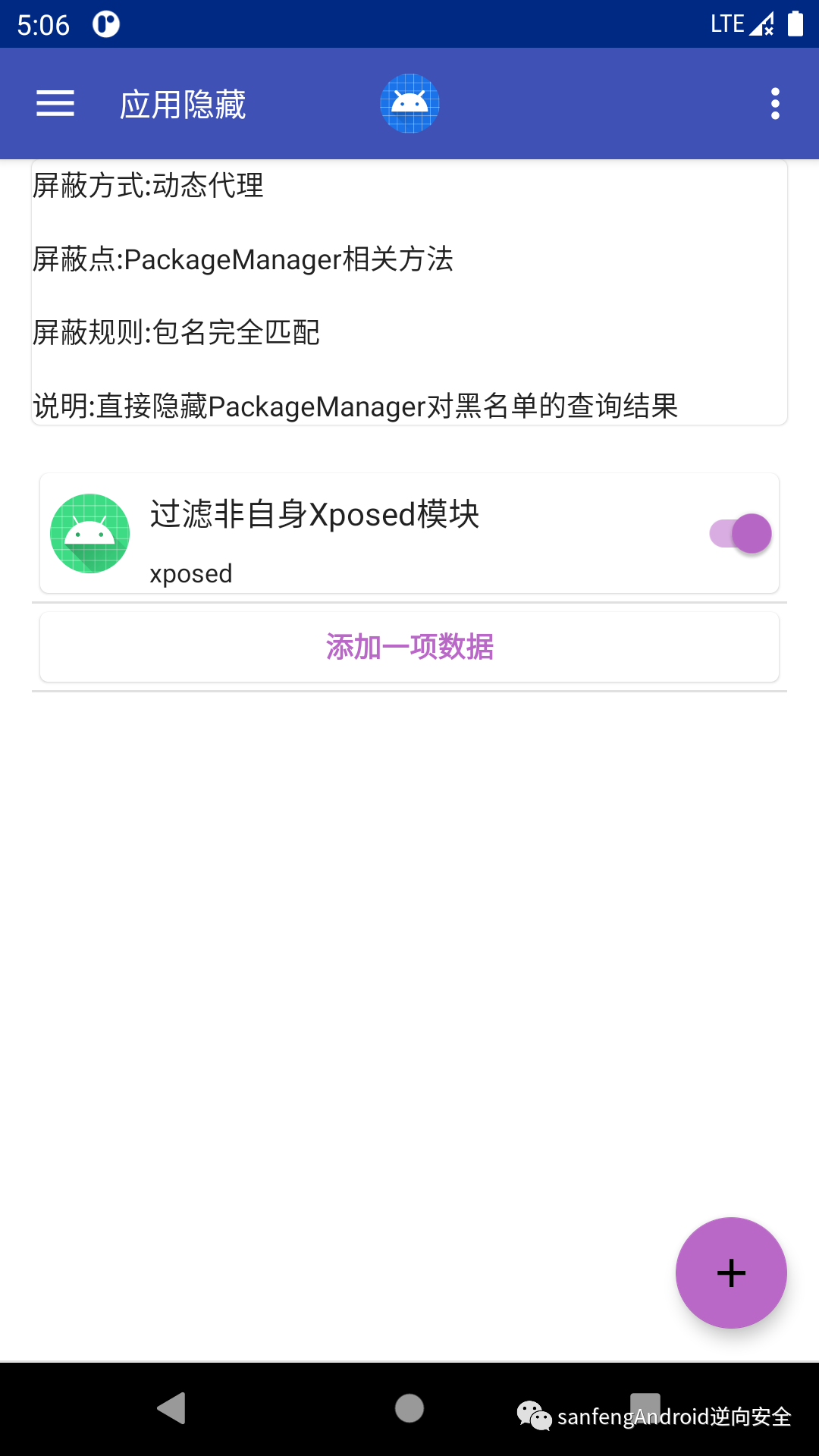

应用/组件隐藏
- 使用动态代理
PackageManager、ActivityManager、ActivityTaskManager屏蔽常见会使用到获取其它应用属性的方法，如：getInstalledPackages、getInstalledApplications、getRunningServices、getTasks等等。应用进程本身就是通过Binder与system_server服务进程通信进程内只存在一个IBinger对象，因此非常适合使用动态代理，这里屏蔽掉几乎所有能够访问其它应用的方式，具体查看源码HookSystemComponent[4]。 PackageManager源码在 ActivityThread.getPackageManager[5]
static volatile IPackageManager sPackageManager;
public static IPackageManager getPackageManager() {
if (sPackageManager != null) {
return sPackageManager;
}
final IBinder b = ServiceManager.getService("package");
sPackageManager = IPackageManager.Stub.asInterface(b);
return sPackageManager;
}
因此只需要使用反射修改 sPackageManager 静态变量即可
ActivityManager源码AndroidO以上在 ActivityManager.IActivityManagerSingleton[6]，AndroidO以下在ActivityManagerNative.gDefault，都是一个单例对象
private static final Singleton<IActivityManager> IActivityManagerSingleton =
new Singleton<IActivityManager>() {
@Override
protected IActivityManager create() {
final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
final IActivityManager am = IActivityManager.Stub.asInterface(b);
return am;
}
};
同样反射修改 Singleton 里面的对象即可
ActivityTaskManager是AndroidQ以上新增的一个服务，修改方法同ActivityManager
环境变量修改
Java调用System.getenv()、System.getenv(String)源码如下
public static java.util.Map<String,String> getenv() {
SecurityManager sm = getSecurityManager();
if (sm != null) {
sm.checkPermission(new RuntimePermission("getenv.*"));
}
return ProcessEnvironment.getenv();
}
public static String getenv(String name) {
if (name == null) {
throw new NullPointerException("name == null");
}
return Libcore.os.getenv(name);
}
其最终调用两个函数 Libcore.os.environ()、Libcore.os.getenv(String)
public final class Libcore {
private Libcore() { }
public static final Os rawOs = new Linux();
public static volatile Os os = new BlockGuardOs(rawOs);
...
}
public final class Linux implements Os {
Linux() { }
public native String getenv(String name);
public native String[] environ();
...
}
不同版本 Libcore.os 的实现对象类名不一样，但是区别很小，而 native 中访问到是 libc 导出变量 environ、导出函数 getenv，因此通过 Native Hook 拦截 getenv 函数即可拦截对应 Java System.getenv(String)调用，而 System.getenv() 调用是直接使用 environ 变量，因此暂时采用Java Hook替换该Map对象，通常情况下应用是很少使用到 System.getenv 非系统环境变量的，一些软件检测才会使用，因此后续可能会直接修改 environ 变量中的值
全局属性 SystemProperties 修改
Java反射使用SystemProperties.get系列方法
@NonNull
@SystemApi
public static String get(@NonNull String key, @Nullable String def) {
if (TRACK_KEY_ACCESS) onKeyAccess(key);
return native_get(key, def);
}
...
@FastNative
@UnsupportedAppUsage(maxTargetSdk = Build.VERSION_CODES.P)
private static native String native_get(String key, String def);
调用 android_os_SystemProperties.cpp[7] 中的方法
template<typename Functor>
void ReadProperty(const prop_info* prop, Functor&& functor)
{
#if defined(__BIONIC__)
auto thunk = [](void* cookie,
const char* /*name*/,
const char* value,
uint32_t /*serial*/) {
std::forward<Functor>(*static_cast<Functor*>(cookie))(value);
};
__system_property_read_callback(prop, thunk, &functor);
#else
LOG(FATAL) << "fast property access supported only on device";
#endif
}
template<typename Functor>
void ReadProperty(JNIEnv* env, jstring keyJ, Functor&& functor)
{
ScopedUtfChars key(env, keyJ);
if (!key.c_str()) {
return;
}
#if defined(__BIONIC__)
const prop_info* prop = __system_property_find(key.c_str());
if (!prop) {
return;
}
ReadProperty(prop, std::forward<Functor>(functor));
#else
std::forward<Functor>(functor)(
android::base::GetProperty(key.c_str(), "").c_str());
#endif
}
jstring SystemProperties_getSS(JNIEnv* env, jclass clazz, jstring keyJ,
jstring defJ)
{
jstring ret = defJ;
ReadProperty(env, keyJ, [&](const char* value "&") {
if (value[0]) {
ret = env->NewStringUTF(value);
}
});
if (ret == nullptr && !env->ExceptionCheck()) {
ret = env->NewStringUTF(""); // Legacy behavior
}
return ret;
}
int register_android_os_SystemProperties(JNIEnv *env)
{
const JNINativeMethod method_table[] = {
{ "native_get",
"(Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;",
(void*) SystemProperties_getSS },
{ "native_get_int", "(Ljava/lang/String;I)I",
(void*) SystemProperties_get_integral<jint> },
{ "native_get_long", "(Ljava/lang/String;J)J",
(void*) SystemProperties_get_integral<jlong> },
{ "native_get_boolean", "(Ljava/lang/String;Z)Z",
(void*) SystemProperties_get_boolean },
{ "native_find",
"(Ljava/lang/String;)J",
(void*) SystemProperties_find },
{ "native_get",
"(J)Ljava/lang/String;",
(void*) SystemProperties_getH },
{ "native_get_int", "(JI)I",
(void*) SystemProperties_get_integralH<jint> },
{ "native_get_long", "(JJ)J",
(void*) SystemProperties_get_integralH<jlong> },
{ "native_get_boolean", "(JZ)Z",
(void*) SystemProperties_get_booleanH },
{ "native_set", "(Ljava/lang/String;Ljava/lang/String;)V",
(void*) SystemProperties_set },
{ "native_add_change_callback", "()V",
(void*) SystemProperties_add_change_callback },
{ "native_report_sysprop_change", "()V",
(void*) SystemProperties_report_sysprop_change },
};
return RegisterMethodsOrDie(env, "android/os/SystemProperties",
method_table, NELEM(method_table));
}
而它调用了 libc.so 中的 __system_property_find，__system_property_read_callback，在低版本中获取属性也使用到了 __system_property_get 方法，因此采用 Native Hook 以上这三个方法，这里也要注意不同版本在不同动态库中实现
Android Global 属性修改
- 采用 Java Hook
Global.getString方法修改
Runtime.exec 拦截
- 源码分析如下
public class Runtime{
public Process exec(String[] cmdarray, String[] envp, File dir)
throws IOException {
return new ProcessBuilder(cmdarray)
.environment(envp)
.directory(dir)
.start();
}
}
public final class ProcessBuilder{
public Process start() throws IOException {
...
try {
return ProcessImpl.start(cmdarray,
environment,
dir,
redirects,
redirectErrorStream);
} catch (IOException | IllegalArgumentException e) {
...
}
}
final class ProcessImpl {
static Process start(String[] cmdarray,
java.util.Map<String,String> environment,
String dir,
ProcessBuilder.Redirect[] redirects,
boolean redirectErrorStream)
throws IOException
{
assert cmdarray != null && cmdarray.length > 0;
// Convert arguments to a contiguous block; it's easier to do
...
// 复制环境变量
FileInputStream f0 = null;
FileOutputStream f1 = null;
FileOutputStream f2 = null;
try {
if (redirects == null) {
std_fds = new int[] { -1, -1, -1 };
} else {
// 重定向流
...
}
return new UNIXProcess
(toCString(cmdarray[0]),
argBlock, args.length,
envBlock, envc[0],
toCString(dir),
std_fds,
redirectErrorStream);
} finally {
// In theory, close() can throw IOException
// (although it is rather unlikely to happen here)
try { if (f0 != null) f0.close(); }
finally {
try { if (f1 != null) f1.close(); }
finally { if (f2 != null) f2.close(); }
}
}
}
final class UNIXProcess extends Process {
private native int forkAndExec(byte[] prog,
byte[] argBlock, int argc,
byte[] envBlock, int envc,
byte[] dir,
int[] fds,
boolean redirectErrorStream)
throws IOException;
UNIXProcess(final byte[] prog,
final byte[] argBlock, final int argc,
final byte[] envBlock, final int envc,
final byte[] dir,
final int[] fds,
final boolean redirectErrorStream)
throws IOException {
pid = forkAndExec(prog,
argBlock, argc,
envBlock, envc,
dir,
fds,
redirectErrorStream);
try {
doPrivileged(new PrivilegedExceptionAction<Void>() {
public Void run() throws IOException {
initStreams(fds);
return null;
}});
} catch (PrivilegedActionException ex) {
throw (IOException) ex.getException();
}
}
通过跟踪 Runtime.exec() -> ProcessBuilder.start() -> ProcessImpl.start() -> new UNIXProcess() -> UNIXProcess.forkAndExec() 最终执行 UNIXProcess.forkAndExec 产生子进程，继续跟踪 native
JNIEXPORT jint JNICALL
UNIXProcess_forkAndExec(JNIEnv *env,
jobject process,
jbyteArray prog,
jbyteArray argBlock, jint argc,
jbyteArray envBlock, jint envc,
jbyteArray dir,
jintArray std_fds,
jboolean redirectErrorStream)
{
...
// 上面设置环境变量，重定向输入输出流
// startChild关键函数启动子进程
resultPid = startChild(c);
assert(resultPid != 0);
if (resultPid < 0) {
throwIOException(env, errno, START_CHILD_SYSTEM_CALL " failed");
goto Catch;
}
restartableClose(fail[1]); fail[1] = -1; /* See: WhyCantJohnnyExec */
switch (readFully(fail[0], &errnum, sizeof(errnum))) {
case 0: break; /* Exec succeeded */
case sizeof(errnum):
waitpid(resultPid, NULL, 0);
throwIOException(env, errnum, "Exec failed");
goto Catch;
default:
throwIOException(env, errno, "Read failed");
goto Catch;
}
fds[0] = (in [1] != -1) ? in [1] : -1;
fds[1] = (out[0] != -1) ? out[0] : -1;
fds[2] = (err[0] != -1) ? err[0] : -1;
Finally:
#if START_CHILD_USE_CLONE
free(c->clone_stack);
#endif
/* Always clean up the child's side of the pipes */
closeSafely(in [0]);
closeSafely(out[1]);
closeSafely(err[1]);
/* Always clean up fail descriptors */
closeSafely(fail[0]);
closeSafely(fail[1]);
releaseBytes(env, prog, pprog);
releaseBytes(env, argBlock, pargBlock);
releaseBytes(env, envBlock, penvBlock);
releaseBytes(env, dir, c->pdir);
free(c->argv);
free(c->envv);
free(c);
if (fds != NULL)
(*env)->ReleaseIntArrayElements(env, std_fds, fds, 0);
return resultPid;
Catch:
/* Clean up the parent's side of the pipes in case of failure only */
closeSafely(in [1]);
closeSafely(out[0]);
closeSafely(err[0]);
goto Finally;
}
最关键函数 startChild 继续跟踪
static pid_t
startChild(ChildStuff *c) {
#if START_CHILD_USE_CLONE
#define START_CHILD_CLONE_STACK_SIZE (64 * 1024)
/*
* See clone(2).
* Instead of worrying about which direction the stack grows, just
* allocate twice as much and start the stack in the middle.
*/
if ((c->clone_stack = malloc(2 * START_CHILD_CLONE_STACK_SIZE)) == NULL)
/* errno will be set to ENOMEM */
return -1;
return clone(childProcess,
c->clone_stack + START_CHILD_CLONE_STACK_SIZE,
CLONE_VFORK | CLONE_VM | SIGCHLD, c);
#else
#if START_CHILD_USE_VFORK
/*
* We separate the call to vfork into a separate function to make
* very sure to keep stack of child from corrupting stack of parent,
* as suggested by the scary gcc warning:
* warning: variable 'foo' might be clobbered by 'longjmp' or 'vfork'
*/
volatile pid_t resultPid = vfork();
#else
/*
* From Solaris fork(2): In Solaris 10, a call to fork() is
* identical to a call to fork1(); only the calling thread is
* replicated in the child process. This is the POSIX-specified
* behavior for fork().
*/
pid_t resultPid = fork();
#endif
if (resultPid == 0)
// 子进程处理对应命令
childProcess(c);
assert(resultPid != 0); /* childProcess never returns */
return resultPid;
#endif /* ! START_CHILD_USE_CLONE */
}
调用 clone、vfork、fork 函数产生子进程然后调用 childProcess(c) 处理命令，这里使用哪一个函数产生子进程不是重点，我们关心的是子进程如何执行命令
static int
childProcess(void *arg)
{
const ChildStuff* p = (const ChildStuff*) arg;
/* Close the parent sides of the pipes.
Closing pipe fds here is redundant, since closeDescriptors()
would do it anyways, but a little paranoia is a good thing. */
if ((closeSafely(p->in[1]) == -1) ||
(closeSafely(p->out[0]) == -1) ||
(closeSafely(p->err[0]) == -1) ||
(closeSafely(p->fail[0]) == -1))
goto WhyCantJohnnyExec;
/* Give the child sides of the pipes the right fileno's. */
/* Note: it is possible for in[0] == 0 */
if ((moveDescriptor(p->in[0] != -1 ? p->in[0] : p->fds[0],
STDIN_FILENO) == -1) ||
(moveDescriptor(p->out[1]!= -1 ? p->out[1] : p->fds[1],
STDOUT_FILENO) == -1))
goto WhyCantJohnnyExec;
if (p->redirectErrorStream) {
if ((closeSafely(p->err[1]) == -1) ||
(restartableDup2(STDOUT_FILENO, STDERR_FILENO) == -1))
goto WhyCantJohnnyExec;
} else {
if (moveDescriptor(p->err[1] != -1 ? p->err[1] : p->fds[2],
STDERR_FILENO) == -1)
goto WhyCantJohnnyExec;
}
if (moveDescriptor(p->fail[1], FAIL_FILENO) == -1)
goto WhyCantJohnnyExec;
/* close everything */
if (closeDescriptors() == 0) { /* failed, close the old way */
int max_fd = (int)sysconf(_SC_OPEN_MAX);
int fd;
for (fd = FAIL_FILENO + 1; fd < max_fd; fd++)
if (restartableClose(fd) == -1 && errno != EBADF)
goto WhyCantJohnnyExec;
}
/* change to the new working directory */
if (p->pdir != NULL && chdir(p->pdir) < 0)
goto WhyCantJohnnyExec;
if (fcntl(FAIL_FILENO, F_SETFD, FD_CLOEXEC) == -1)
goto WhyCantJohnnyExec;
// 最终调用 JDK_execvpe 执行命令
JDK_execvpe(p->argv[0], p->argv, p->envv);
WhyCantJohnnyExec:
/* We used to go to an awful lot of trouble to predict whether the
* child would fail, but there is no reliable way to predict the
* success of an operation without *trying* it, and there's no way
* to try a chdir or exec in the parent. Instead, all we need is a
* way to communicate any failure back to the parent. Easy; we just
* send the errno back to the parent over a pipe in case of failure.
* The tricky thing is, how do we communicate the *success* of exec?
* We use FD_CLOEXEC together with the fact that a read() on a pipe
* yields EOF when the write ends (we have two of them!) are closed.
*/
{
int errnum = errno;
restartableWrite(FAIL_FILENO, &errnum, sizeof(errnum));
}
restartableClose(FAIL_FILENO);
_exit(-1);
return 0; /* Suppress warning "no return value from function" */
}
static void
JDK_execvpe(const char *file,
const char *argv[],
const char *const envp[])
{
if (envp == NULL || (char **) envp == environ) {
execvp(file, (char **) argv);
return;
}
if (*file == '\0') {
errno = ENOENT;
return;
}
if (strchr(file, '/') != NULL) {
execve_with_shell_fallback(file, argv, envp);
} else {
/* We must search PATH (parent's, not child's) */
char expanded_file[PATH_MAX];
int filelen = strlen(file);
int sticky_errno = 0;
const char * const * dirs;
for (dirs = parentPathv; *dirs; dirs++) {
const char * dir = *dirs;
int dirlen = strlen(dir);
if (filelen + dirlen + 1 >= PATH_MAX) {
errno = ENAMETOOLONG;
continue;
}
memcpy(expanded_file, dir, dirlen);
memcpy(expanded_file + dirlen, file, filelen);
expanded_file[dirlen + filelen] = '\0';
execve_with_shell_fallback(expanded_file, argv, envp);
/* There are 3 responses to various classes of errno:
* return immediately, continue (especially for ENOENT),
* or continue with "sticky" errno.
*
* From exec(3):
*
* If permission is denied for a file (the attempted
* execve returned EACCES), these functions will continue
* searching the rest of the search path. If no other
* file is found, however, they will return with the
* global variable errno set to EACCES.
*/
switch (errno) {
case EACCES:
sticky_errno = errno;
/* FALLTHRU */
case ENOENT:
case ENOTDIR:
#ifdef ELOOP
case ELOOP:
#endif
#ifdef ESTALE
case ESTALE:
#endif
#ifdef ENODEV
case ENODEV:
#endif
#ifdef ETIMEDOUT
case ETIMEDOUT:
#endif
break; /* Try other directories in PATH */
default:
return;
}
}
if (sticky_errno != 0)
errno = sticky_errno;
}
}
static void
execve_with_shell_fallback(const char *file,
const char *argv[],
const char *const envp[])
{
#if START_CHILD_USE_CLONE || START_CHILD_USE_VFORK
/* shared address space; be very careful. */
execve(file, (char **) argv, (char **) envp);
if (errno == ENOEXEC)
execve_as_traditional_shell_script(file, argv, envp);
#else
/* unshared address space; we can mutate environ. */
environ = (char **) envp;
execvp(file, (char **) argv);
#endif
}
通过上面分析，最终调用 JDK_execvpe -> execve_with_shell_fallback -> execve/execvp 执行命令，实际测试执行 Runtime.exec 最终执行到 execvp 中。由于 fork 子进程后会继承父进程的环境，因此也可通过 Native Hook 来拦截该函数，但是实际测试中如果拦截 execvp 会导致子进程一直无法结束，从而导致卡住，这里原因暂时不明，有知道的可以留言告诉我。因此还是老实采用 Java Hook 更底层方法 java.lang.UNIXProcess 构造方法，对于低版本 Hook java.lang.ProcessManager.exec 方法。基于此提供命令，参数替换，以及固定输入、输出、错误流。具体源码查看 HookRuntime[8]
文件重定向/访问控制（核心）
-
文件重定向/黑名单：
Native Hook与 IO 有关的方法，由于我们使用的PLT Hook因此要尽可能的包含全部函数 -
如
openat、__openat、open、fopen等libc函数，Java中的File使用调用到Libcore.os中，这与上面分析环境变量类似，因此只需要Hooklibc 中的 IO 函数即可，查看代码hook_io[9]。 -
syscall函数，自己实现软中断系统调用的无法拦截，其inline Hook框架也无法拦截，只能通过修改内核或动态查找软中断系统调用然后再 Hook，这种极个别情况忽略，查看代码 hook_syscall[10] -
exec簇执行函数，它会传入可执行文件路径，也需要重定向，查看代码 hook_exec[11] -
与时间相关函数
utimes、utime、lutimes，查看代码 hook_time[12] -
与文件访问路径相关函数
chdir、linkat等，查看代码 hook_unistd[13] -
与文件状态相关函数
fchmodat、fstatat、stat等，查看代码 hook_stat[14] -
maps文件过滤，基于文件重定向，当要访问maps文件时将修改掉需要过滤的数据然后将它重定向到缓存路径，查看代码 io_redirect[15] -
动态加载函数
dlopen、android_dlopen_ext，查看代码 hook_dlfcn[16] -
文件权限控制
-
statfstatat、access等函数，查看代码 hook_stat[17]
符号隐藏
- Native Hook
dlsym函数，屏蔽一些符号查找和重定向libc库中的函数到Hook 模块中，查看代码 hook_dlfcn[18]
系统共享库查找
- 上面 Hook 的
native方法都是libc中的导出方法，要让Native Hook生效我们则需要重定位那些已经加载过的动态库，其中系统中最主要使用的Libcore库，我们通过查找Android.bp(旧版本Android.mk)来查找共享库名称，如果没找到名称则目录一级一级的向上继续查找，下面与最新版Libcore为例，其它版本类似
- 如上面频繁使用的
libcore_io_Linux.cpp为例，源码路径在libcore/luni/src/main/native/libcore_io_Linux.cpp，它所属的编译模块Android.bp(libcore/luni/src/main/native/Android.bp)，有关配置如下
package {
// http://go/android-license-faq
// A large-scale-change added 'default_applicable_licenses' to import
// the below license kinds from "libcore_luni_license":
// SPDX-license-identifier-Apache-2.0
default_applicable_licenses: ["libcore_luni_license"],
}
filegroup {
name: "luni_native_srcs",
visibility: [
"//libcore",
],
srcs: [
"ExecStrings.cpp",
"IcuUtilities.cpp",
"JniConstants.cpp",
"JniException.cpp",
"NetworkUtilities.cpp",
"Register.cpp",
"ZipUtilities.cpp",
"android_system_OsConstants.cpp",
"cbigint.cpp",
"java_lang_StringToReal.cpp",
"java_lang_invoke_MethodHandle.cpp",
"java_lang_invoke_VarHandle.cpp",
"libcore_math_NativeBN.cpp",
"libcore_icu_ICU.cpp",
"libcore_io_AsynchronousCloseMonitor.cpp",
// 这里包含我们需要拦截的源代码
"libcore_io_Linux.cpp",
"libcore_io_Memory.cpp",
"libcore_util_NativeAllocationRegistry.cpp",
"org_apache_harmony_xml_ExpatParser.cpp",
"sun_misc_Unsafe.cpp",
"valueOf.cpp",
],
}
filegroup {
name: "libandroidio_srcs",
visibility: [
"//libcore",
],
srcs: [
"AsynchronousCloseMonitor.cpp",
],
}
这里没有找到模块名称，则继续向上级目录查找编译脚本，上层找到 libcore/luni/Android.bp，配置如下
package {
default_applicable_licenses: ["libcore_luni_license"],
}
// Added automatically by a large-scale-change
// http://go/android-license-faq
license {
name: "libcore_luni_license",
visibility: [":__subpackages__"],
license_kinds: [
"SPDX-license-identifier-Apache-2.0",
],
license_text: [
"license.html",
],
}
还是没找到名称继续往上查找 libcore/Android.bp
license {
name: "libcore_license",
visibility: [":__subpackages__"],
license_kinds: [
"SPDX-license-identifier-Apache-2.0",
"SPDX-license-identifier-BSD",
"SPDX-license-identifier-GPL",
"SPDX-license-identifier-GPL-2.0",
"SPDX-license-identifier-LGPL",
"SPDX-license-identifier-MIT",
"SPDX-license-identifier-OpenSSL",
"SPDX-license-identifier-Unicode-DFS",
"SPDX-license-identifier-W3C",
"legacy_unencumbered",
],
license_text: [
"LICENSE",
"NOTICE",
],
}
build = [
"JavaLibrary.bp",
// 这里有两个编译脚本
"NativeCode.bp",
]
genrule {
name: "notices-for-framework-stubs-gen",
tool_files: [
"NOTICE",
"ojluni/NOTICE",
],
cmd: "cp -f $(location NOTICE) $(genDir)/NOTICES/libcore-NOTICE && cp -f $(location ojluni/NOTICE) $(genDir)/NOTICES/ojluni-NOTICE",
out: [
"NOTICES/libcore-NOTICE",
"NOTICES/ojluni-NOTICE",
],
}
java_library {
name: "art-notices-for-framework-stubs-jar",
visibility: [
"//art/build/sdk",
"//frameworks/base",
],
java_resources: [
":notices-for-framework-stubs-gen",
],
sdk_version: "core_current",
}
查看 NativeCode.bp
cc_library_shared {
name: "libjavacore",
visibility: [
"//art/build/apex",
],
apex_available: [
"com.android.art",
"com.android.art.debug",
],
defaults: [
"core_native_default_flags",
"core_native_default_libs",
],
srcs: [
":luni_native_srcs",
],
shared_libs: [
"libandroidio",
"libbase",
"libcrypto",
"libicu",
"libexpat",
"libnativehelper",
"libz",
],
static_libs: [
"libziparchive",
],
}
最终找到该名称为 libjavacore.so
- 根据代码位置猜测，或者直接在
maps文件里面查找哪些已经加载的可疑的库，目前查找到系统有关的库包含如下几个
libjavacore.so与文件重定向、文件状态、exec 执行有关libnativehelper.so与动态加载有关libnativeloader.soAndroid 7 以上动态加载有关libart.so与文件重定向、动态加载有关libopenjdk.so与文件重定向、文件状态有关libopenjdkjvm.so与文件访问有关libandroid_runtime.so与文件访问有关libcutils.so与 SystemProperties 访问有关
- 如果有遗漏的库可以调用
NativeHook.relinkLibrary()重新重定位该库
其它模块调用
查看 FakeXposed[19] 说明文档
软件使用截图
- 软件状态
- 应用配置，长按开启/关闭
- 对应功能配置
参考资料
[1]
FakeXposed: https://github.com/sanfengAndroid/FakeXposed
[3]
fake-linker: https://github.com/sanfengAndroid/fake-linker
[4]
HookSystemComponent: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/java/com/sanfengandroid/xp/hooks/HookSystemComponent.java
[5]
ActivityThread.getPackageManager: https://cs.android.com/android/platform/superproject/+/master:frameworks/base/core/java/android/app/ActivityThread.java;l=2185;bpv=0;bpt=0
[6]
ActivityManager.IActivityManagerSingleton: https://cs.android.com/android/platform/superproject/+/master:frameworks/base/core/java/android/app/ActivityManager.java;drc=master;l=4553?q=ActivityManager&ss=android%2Fplatform%2Fsuperproject
[7]
android_os_SystemProperties.cpp: https://cs.android.com/android/platform/superproject/+/master:frameworks/base/core/jni/android_os_SystemProperties.cpp
[8]
HookRuntime: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/java/com/sanfengandroid/xp/hooks/HookRuntime.java
[9]
hook_io: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_io.cpp
[10]
hook_syscall: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_syscall.cpp
[11]
hook_exec: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_exec.cpp
[12]
hook_time: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_time.cpp
[13]
hook_unistd: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_unistd.cpp
[14]
hook_stat: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_stat.cpp
[15]
io_redirect: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/io_redirect.cpp
[16]
hook_dlfcn: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_dlfcn.cpp
[17]
hook_stat: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_stat.cpp
[18]
hook_dlfcn: https://github.com/sanfengAndroid/FakeXposed/blob/main/app/src/main/cpp/hook/hook_dlfcn.cpp
[19]
FakeXposed: https://github.com/sanfengAndroid/FakeXposed
项目案例
推荐阅读
编译官方frida源码
魔改frida到绕过检测的思路
免责声明：
本文所载程序、技术方法仅面向合法合规的安全研究与教学场景，旨在提升网络安全防护能力，具有明确的技术研究属性。
任何单位或个人未经授权，将本文内容用于攻击、破坏等非法用途的，由此引发的全部法律责任、民事赔偿及连带责任，均由行为人独立承担，本站不承担任何连带责任。
本站内容均为技术交流与知识分享目的发布，若存在版权侵权或其他异议，请通过邮件联系处理，具体联系方式可点击页面上方的联系我。
本文转载自：哆啦安全 《FakeXposed最强屏蔽Xposed、Root检测，自定义maps、文件重定向等支持Android5~14》
版权声明
本站仅做备份收录，仅供研究与教学参考之用。
读者将信息用于其他用途的，全部法律及连带责任由读者自行承担，本站不承担任何责任。
评论
