VT调试器原理揭秘–DebugPort转移与重建调试体系
Qmeimei10086 Qmeimei10086
看雪学苑
2026年9月10日 18:06 上海
在小说阅读器读本章
去阅读
在公众号小说中沉浸阅读
目前市面上主要纯在两种基于虚拟化的调试器：
- 走无附加读写，利用驱动直接读写物理内存，不会调用KeStackAttachProcess，自然也不会留下句柄的痕迹，利用vt本身的MFT技术实现单步调试，断点，优点是完全无痕，缺点也很明显，实现难度很大，从反汇编引擎到VT框架，代码量大，自然也会增加不少不稳定性，而且脱离x64dbg，CE之类的主流调试器生态，缺少各种插件，如果是商业使用对用户来说也不习惯
- 走重建调试体系，大部分其实都是这种，通过ept/npt hook和重写windows调试体系，直接对接传统调试器，优点是代码量小，稳定而且符合使用习惯，缺点自然是相对容易被检测，也就是本文的办法
当我们回忆一下windows的调试体系，其实上相当精简，内核真正置位的只有几个地方，一个是peb->BeingDebugged，这个是老生常谈的，很好处理，你把他改回去就行了。另一个就是Process->DebugPort，这是连接调试器与被调试进程的地方，所有的通信都在这里发生，这里不可能隐藏，也许你会说我hook NtQueryInformationProcess不就行了，但是如果我直接获取结构体偏移，去查Process->DebugPort，你怎么办。所以，只要是在windows调试体系之下，我们是绝对无可能隐藏的了Process->DebugPort
但是如果我们不走windows调试体系，自建一个呢？
浅谈ept/npt hook

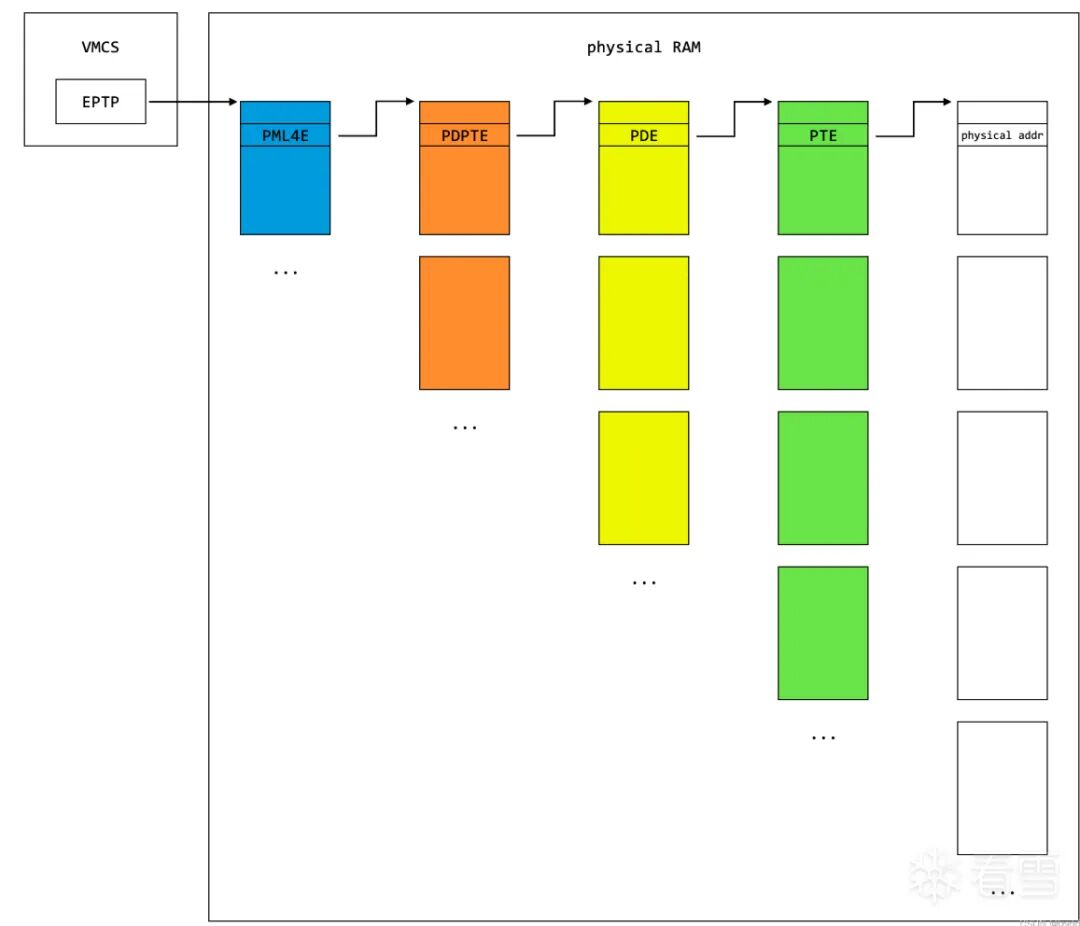

ept hook，是启动利用启动虚拟化之后增加的额外页表的功能，对于Guest机来说，是完全无法察觉到还存在另一层页表的，开启EPT后，真正的物理内存就被隐藏起来了，Guest中的所有人都访问不到，只有Host能访问到，同时我们还可以设置额外页表的属性，衍生出来几种方法：
摘自：https://qi4l.github.io/2024/08/04/%E6%B5%85%E8%B0%88EPT%E6%97%A0%E7%97%95HOOK%E7%9A%84%E6%96%B9%E6%B3%95/
无需MTF置位的无痕Hook
设置EPT页级Hook，使整读和写页无效，而只留下可执行属性。
分配一个新的物理内存（P2），EPT中的EPT Pml1Entry的PhyFrameNumber（原来的P1）替换成新分配的。
修改P2，使其变成一个绝对跳转，跳转到Hook的地方去执行。
页面受到读写访问，EPT Violation，此时将此页面为可读写，不可执行。
下次执行的时候，遇到不可执行内存，EPT Violation再次恢复可执行，不可读写 缺点。
此Hook有个很大的缺陷，考虑如下。
hook_4kb_addr:
mov rax, ds:[hook_4kb_addr]
这样就会无限MTF，不断的切换不可读写，可读写，导致CPU卡死
仿内存执行断点的无痕Hook
设置页面HOOK，全程可读写，不可执行。
这样有可能就会某一次到要HOOK的地方，但是页可能不到。
如果没到，而是其他地址，恢复可执行，并设置MTF，在MTF Handler中恢复不可执行。
直到遇到要Hook的地方，HOST中直接VMWRITE，修改GUEST_RIP。
缺点:遇到4kb页面访问次数多的，会巨卡无比。
MTF置位全程可执行的无痕Hook
设置EPT页级Hook，使整读和写页无效，而只留下可执行属性。
分配一个新的物理内存（P2），EPT中的EPT Pml1Entry的PhyFrameNumber（原来的P1）替换成新分配的。
修改P2，使其变成一个绝对跳转，跳转到Hook的地方去执行。
页面受到读写访问，EPT Violation，此时将此页面可读/写，并设置MTF位 MTF VM Exit，判断是否是EPT Hook导致的，是则设置不可读写，并替换回P2物理内存。
缺点不太明显，适合Hook内核函数，而对于高频CRC校验的函数，不太适合，总的来说是最适合的EPT无痕Hook了。
总之就是，实现读与执行分离，读出来的是正常的，执行的却是另一套代码，这样就可以规避内存检测，实现绕过patchguard或者其他内存crc检测。
至于npt，就是amd-v技术下的拓展页表，也有着一套相似的流程。
有了npt/ept hook,我们就可以放心大胆的hook这些系统函数了 。
附加调试重构
请先食用：https://bbs.kanxue.com/thread-292227.htm
以下代码大部分来此某佬的仓库https://github.com/xyddnljydd/vt-ReloadDbg
我们首先思考，不通过debug_port，被调试进程怎么找到属于他自己的DEBUG_OBJECT
我们在全局维护起一个g_Debuginfo双向循环链表：
typedef struct _DebugInfomation {
LIST_ENTRY List;
HANDLE SourceProcessId; // 调试器进程 PID
HANDLE TargetProcessId; // 被调试进程 PID
DEBUG_OBJECT* DebugObject; // 假调试对象
} DebugInfomation, *PDebugInfomation;
通过pid查到到属于自己的DebugObject
NtDebugActiveProces
将DEBUG_OBJECT挂到被调试进程的是调试器，所以我们要在第一个入口点hook，也就是NtDebugActiveProcess，在这里我们插入一个独立的g_Debuginfo
NTSTATUS NtDebugActiveProcess(
HANDLE ProcessHandle,
HANDLE DebugObjectHandle)
{
DbgPrintEx(77, 0, "[DbgHook] NtDebugActiveProcess enter pid=%lu\n", (ULONG)PsGetCurrentProcessId());
NTSTATUS status;
KPROCESSOR_MODE PreviousMode;
PDEBUG_OBJECT DebugObject;
BOOLEAN DebugObjectReferenced = FALSE;
PEPROCESS Process, CurrentProcess;
PETHREAD LastThread = NULL;
PreviousMode = ExGetPreviousMode();
status = ObReferenceObjectByHandle(
ProcessHandle,
0x800,
*PsProcessType,
PreviousMode,
(PVOID*)& Process,
NULL);
if (!NT_SUCCESS(status)) {
DbgPrintEx(77, 0, "[DbgHook] NtDebugActiveProcess ObRefProcess failed 0x%08X\n", status);
return status;
}
DbgPrintEx(77, 0, "[DbgHook] NtDebugActiveProcess target pid=%lu\n", (ULONG)PsGetProcessId(Process));
if (Process == (PEPROCESS)PsGetCurrentProcess() || Process == (PEPROCESS)PsInitialSystemProcess) {
ObfDereferenceObject(Process);
return STATUS_ACCESS_DENIED;
}
CurrentProcess = (PEPROCESS)PsGetCurrentProcess();
status = ObReferenceObjectByHandle(
DebugObjectHandle,
0x2,
*g_DbgkDebugObjectType,
PreviousMode,
(PVOID*)& DebugObject,
NULL);
DbgPrintEx(77, 0, "[DbgHook] NtDebugActiveProcess ObRefDebugObject status=0x%08X\n", status);
if (NT_SUCCESS(status))
{
DebugObjectReferenced = TRUE;
}
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink) //建立独立的g_Debuginfo
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->SourceProcessId == PsGetCurrentProcessId())
{
pDebuginfo->TargetProcessId = PsGetProcessId(Process);
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
if (NT_SUCCESS(status)) {
DbgPrintEx(77, 0, "[DbgHook] Acquire RundownProtection ... \n");
PEX_RUNDOWN_REF RundownProtect = (PEX_RUNDOWN_REF)GetProcess_RundownProtect(Process);
if (ExAcquireRundownProtection(RundownProtect))
{
DbgPrintEx(77, 0, "[DbgHook] Acquire RundownProtection success\n");
DbgPrintEx(77, 0,
"[DbgHook] before DbgkpPostFakeProcessCreateMessages Process=%p DebugObject=%p LastThread=%p\n",
Process, DebugObject, LastThread);
DbgPrintEx(77, 0,
"[DbgHook] posting initial process event Process=%p DebugObject=%p\n",
Process, DebugObject);
status = DbgkpPostFakeProcessCreateMessages(Process, DebugObject, &LastThread);
DbgPrintEx(77, 0,
"[DbgHook] DbgkpPostFakeProcessCreateMessages status=0x%08X LastThread=%p\n",
status, LastThread);
if (NT_SUCCESS(status))
{
status = DbgkpSetProcessDebugObject(
(PEPROCESS)Process,
DebugObject,
STATUS_SUCCESS,
LastThread);
DbgPrintEx(77, 0,
"[DbgHook] DbgkpSetProcessDebugObject status=0x%08X\n",
status);
}
ExReleaseRundownProtection(RundownProtect);
}
else {
status = STATUS_PROCESS_IS_TERMINATING;
}
}
ObfDereferenceObject(Process);
if (DebugObjectReferenced)
{
ObfDereferenceObject(DebugObject);
}
DbgPrintEx(77, 0, "[DbgHook] NtDebugActiveProcess return with status%d\n", status);
return status;
}
这里为了调试，日志写多了一点，反正这个函数的调用不是很高频。
来到DbgkpPostFakeThreadMessages
DbgkpPostFakeThreadMessages
这个函数很奇妙，你必须hook，哪怕只是做个中转，不hook就会卡住，估计是和页有关系。
NTSTATUS DbgkpPostFakeThreadMessagesHook(
PEPROCESS Process,
PDEBUG_OBJECT DebugObject,
PETHREAD StartThread,
PETHREAD* pFirstThread,
PETHREAD* pLastThread)
{
DbgPrintEx(77, 0,
"[DbgHook] DbgkpPostFakeThreadMessages enter Process=%p DebugObject=%p StartThread=%p\n",
Process, DebugObject, StartThread);
NTSTATUS Status = OriginalDbgkpPostFakeThreadMessages(
Process,
DebugObject,
StartThread,
pFirstThread,
pLastThread);
DbgPrintEx(77, 0,
"[DbgHook] DbgkpPostFakeThreadMessages return status=0x%08X FirstThread=%p LastThread=%p\n",
Status,
pFirstThread ? *pFirstThread : NULL,
pLastThread ? *pLastThread : NULL);
return Status;
}
DbgkpQueueMessage
这个函数会在两个地方用到，比如：
DbgkpPostFakeProcessCreateMessages(
Process,
DebugObject,
...
);
后续调用：
DbgkpQueueMessage(
Process,
Thread,
ApiMsg,
Flags,
DebugObject);
这时：TargetDebugObject已经是正确对象，不需要再从：Process->DebugPort读取。
因此当前代码： DebugObject = TargetDebugObject; 但是不是所有事件调用路径都一定传入有效的 TargetDebugObject
有些路径可能是： TargetDebugObject == NULL
或者原版逻辑本来就是在函数内部读取Process->DebugPort，比如被调试进程触发异常时像调试器假消息，此时因为我们是自建debugport： Process->DebugPort == NULL
于是两种来源都没有： 显式 TargetDebugObject 为空 Process->DebugPort 也为空
这时需要一个替代关系： 目标进程 PID -> DEBUG_OBJECT
g_Debuginfo 就承担了这个作用：
NTSTATUS DbgkpQueueMessage(
PEPROCESS Process,
PETHREAD Thread,
PDBGKM_APIMSG ApiMsg,
ULONG Flags,
PDEBUG_OBJECT TargetDebugObject)
{
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage enter pid=%lu api=%lu flags=0x%08X explicit=%p\n",
(ULONG)PsGetProcessId(Process),
(ULONG)ApiMsg->ApiNumber,
Flags,
TargetDebugObject);
PDEBUG_EVENT DebugEvent;
DEBUG_EVENT StaticDebugEvent;
PDEBUG_OBJECT DebugObject = NULL;
NTSTATUS Status;
RtlZeroMemory(&StaticDebugEvent, sizeof(StaticDebugEvent));
if (Flags & DEBUG_EVENT_NOWAIT)
{
DebugEvent = (PDEBUG_EVENT)ExAllocatePoolWithQuotaTag((POOL_TYPE)(NonPagedPool | POOL_QUOTA_FAIL_INSTEAD_OF_RAISE), sizeof(DEBUG_EVENT), 'EgbD');//sizeof (DEBUG_EVENT)=0x168
if (!DebugEvent)
{
return STATUS_INSUFFICIENT_RESOURCES;
}
DebugEvent->Flags = Flags | DEBUG_EVENT_INACTIVE;//offset: 0x13
ObReferenceObject(Thread);
ObReferenceObject(Process);
DebugObject = TargetDebugObject;
DebugEvent->BackoutThread = PsGetCurrentThread();
// Create-process notifications are commonly queued with NOWAIT before
// NtCreateUserProcess returns. In that window the explicit object and
// the PID map may both be unavailable, while the native DebugPort still
// temporarily identifies the debug object.
if (DebugObject == NULL)
{
PVOID DebugPortAddress = GetProcess_DebugPort(Process);
if (DebugPortAddress != NULL)
{
DebugObject = *(PDEBUG_OBJECT*)DebugPortAddress;
if (DebugObject != NULL)
{
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage NOWAIT using transient DebugPort pid=%lu object=%p\n",
(ULONG)PsGetProcessId(Process), DebugObject);
}
}
}
}
else
{
DebugEvent = &StaticDebugEvent;
DebugEvent->Flags = Flags;
// The kernel caller already resolved the object for this event. This is
// important during attach, before the PID mapping is fully observable.
DebugObject = TargetDebugObject;
// During NtCreateUserProcess, the process DebugPort is populated by the
// native path before the first create event is queued. The user-process
// wrapper cannot establish the PID mapping yet because it has not returned.
// Use that transient native value only for routing this event; the wrapper
// still clears it after process creation completes.
if (DebugObject == NULL)
{
PVOID DebugPortAddress = GetProcess_DebugPort(Process);
if (DebugPortAddress != NULL)
{
DebugObject = *(PDEBUG_OBJECT*)DebugPortAddress;
if (DebugObject != NULL)
{
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage using transient Process->DebugPort pid=%lu object=%p\n",
(ULONG)PsGetProcessId(Process), DebugObject);
}
}
}
ExAcquireFastMutex(DbgkpProcessDebugPortMutex);
if (DebugObject == NULL)
{
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->TargetProcessId == PsGetProcessId(Process))
{
DebugObject = pDebuginfo->DebugObject;
break;
}
}
// During CreateProcess, the first debug events are emitted before
// NtCreateUserProcess returns, so TargetProcessId is not known yet.
// The creator PID is the debugger PID for this synchronous path.
if (DebugObject == NULL &&
PsGetProcessId(Process) != PsGetCurrentProcessId())
{
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->SourceProcessId == PsGetCurrentProcessId())
{
DebugObject = pDebuginfo->DebugObject;
pDebuginfo->TargetProcessId = PsGetProcessId(Process);
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage creator fallback source=%lu target=%lu object=%p\n",
(ULONG)PsGetCurrentProcessId(),
(ULONG)PsGetProcessId(Process),
DebugObject);
break;
}
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
}
PVOID CrossThreadFlags = GetThread_CrossThreadFlags(Thread);
if (ApiMsg->ApiNumber == DbgKmCreateThreadApi || ApiMsg->ApiNumber == DbgKmCreateProcessApi) {
if (*(PULONG)(CrossThreadFlags)& PS_CROSS_THREAD_FLAGS_SKIP_CREATION_MSG) {
DebugObject = NULL;
}
}
if (ApiMsg->ApiNumber == DbgKmExitThreadApi || ApiMsg->ApiNumber == DbgKmExitProcessApi) {
if (*(PULONG)(CrossThreadFlags)& PS_CROSS_THREAD_FLAGS_SKIP_TERMINATION_MSG) {
DebugObject = NULL;
}
}
}
KeInitializeEvent(&DebugEvent->ContinueEvent, SynchronizationEvent, FALSE);
DebugEvent->Process = Process;
DebugEvent->Thread = Thread;
DebugEvent->ApiMsg = *ApiMsg;
DebugEvent->ClientId.UniqueProcess = PsGetThreadProcessId(Thread);
DebugEvent->ClientId.UniqueThread = PsGetThreadId(Thread);
//KIRQL irql = KeGetCurrentIrql();//win7 ������ܻᱨirql bsod���������ֱ�ӷ���
if (DebugObject == NULL/* || irql >= APC_LEVEL*/)
{
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage no debug object pid=%lu api=%lu flags=0x%08X\n",
(ULONG)PsGetProcessId(Process),
(ULONG)ApiMsg->ApiNumber,
Flags);
Status = STATUS_PORT_NOT_SET;
}
else
{
ExAcquireFastMutex(&DebugObject->Mutex);
if ((DebugObject->Flags & DEBUG_OBJECT_DELETE_PENDING) == 0) {
InsertTailList(&DebugObject->EventList, &DebugEvent->EventList);
if ((Flags & DEBUG_EVENT_NOWAIT) == 0) {
KeSetEvent(&DebugObject->EventsPresent, 0, FALSE);
}
Status = STATUS_SUCCESS;
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage queued pid=%lu api=%lu flags=0x%08X nowait=%d\n",
(ULONG)PsGetProcessId(Process),
(ULONG)ApiMsg->ApiNumber,
Flags,
(Flags & DEBUG_EVENT_NOWAIT) != 0);
}
else
{
Status = STATUS_DEBUGGER_INACTIVE;
}
ExReleaseFastMutex(&DebugObject->Mutex);
}
if ((Flags & DEBUG_EVENT_NOWAIT) == 0) {
ExReleaseFastMutex(DbgkpProcessDebugPortMutex);
if (NT_SUCCESS(Status)) {
KeWaitForSingleObject(
&DebugEvent->ContinueEvent,
Executive,
KernelMode,
FALSE,
NULL);
Status = DebugEvent->Status;
*ApiMsg = DebugEvent->ApiMsg;
}
}
else {
if (!NT_SUCCESS(Status)) {
ObfDereferenceObject(Process);
ObfDereferenceObject(Thread);
ExFreePool(DebugEvent);
}
}
DbgPrintEx(77, 0,
"[DbgHook] DbgkpQueueMessage return status=0x%08X pid=%lu api=%lu flags=0x%08X\n",
Status,
(ULONG)PsGetProcessId(Process),
(ULONG)ApiMsg->ApiNumber,
Flags);
return Status;
}
DbgkpSetProcessDebugObject
DbgkpSetProcessDebugObject是把调试对象挂到被调试进程的地方,同时也是置位peb->BeingDebugged，我们肯定要hook，只要不让他干这些事就行了。
NTSTATUS DbgkpSetProcessDebugObject(
PEPROCESS Process,
PDEBUG_OBJECT DebugObject,
NTSTATUS MsgStatus,
PETHREAD LastThread)
{
NTSTATUS Status;
PETHREAD ThisThread;
LIST_ENTRY TempList;
PLIST_ENTRY Entry;
PDEBUG_EVENT DebugEvent;
BOOLEAN First;
PETHREAD Thread;
BOOLEAN GlobalHeld;
PETHREAD FirstThread = NULL;
ThisThread = (PETHREAD)PsGetCurrentThread();
InitializeListHead(&TempList);
First = TRUE;
GlobalHeld = FALSE;
if (!NT_SUCCESS(MsgStatus)) {
LastThread = NULL;
Status = MsgStatus;
}
else {
Status = STATUS_SUCCESS;
}
if (NT_SUCCESS(Status)) {
while (TRUE) {
////��������DebugPort����������
//PVOID DebugPort__ = GetProcess_DebugPort(Process);
//*(ULONG64 *)(DebugPort__) = (ULONG64)DebugObject;
ExAcquireFastMutex(DbgkpProcessDebugPortMutex);
GlobalHeld = TRUE;
if (LastThread != NULL) {
ObfReferenceObject(LastThread);
}
Thread = (PETHREAD)PsGetNextProcessThread((PEPROCESS)Process, (PETHREAD)LastThread);
if (Thread != NULL) {
ExReleaseFastMutex(DbgkpProcessDebugPortMutex);
GlobalHeld = FALSE;
if (LastThread != NULL) {
ObfDereferenceObject(LastThread);
}
Status = DbgkpPostFakeThreadMessages(
Process,
DebugObject,
Thread,
&FirstThread,
&LastThread);
if (!NT_SUCCESS(Status)) {
LastThread = NULL;
break;
}
if (FirstThread != NULL) {
ObfDereferenceObject(FirstThread);
FirstThread = NULL;
}
}
else {
break;
}
}
}
// Keep the real DebugPort hidden. DbgkpQueueMessage uses g_Debuginfo to
// route normal events while the target process remains non-debuggable to
// callers that inspect EPROCESS.
ExAcquireFastMutex(&DebugObject->Mutex);
if (NT_SUCCESS(Status)) {
if ((DebugObject->Flags & DEBUG_OBJECT_DELETE_PENDING) == 0) {
ObfReferenceObject(DebugObject);
}
else {
Status = STATUS_DEBUGGER_INACTIVE;
}
}
for (Entry = DebugObject->EventList.Flink; Entry != &DebugObject->EventList;) {
DebugEvent = CONTAINING_RECORD(Entry, DEBUG_EVENT, EventList);
Entry = Entry->Flink;
if ((DebugEvent->Flags & DEBUG_EVENT_INACTIVE) != 0 && DebugEvent->BackoutThread == (PETHREAD)ThisThread) {
Thread = DebugEvent->Thread;
if (NT_SUCCESS(Status)) {
if ((DebugEvent->Flags & DEBUG_EVENT_PROTECT_FAILED) != 0) {
PVOID CrossThreadFlags = GetThread_CrossThreadFlags(Thread);
RtlInterlockedSetBitsDiscardReturn(CrossThreadFlags, 0x100);
RemoveEntryList(&DebugEvent->EventList);
InsertTailList(&TempList, &DebugEvent->EventList);
}
else {
if (First) {
DebugEvent->Flags &= ~DEBUG_EVENT_INACTIVE;
KeSetEvent(&DebugObject->EventsPresent, 0, FALSE);
First = FALSE;
}
DebugEvent->BackoutThread = NULL;
PVOID CrossThreadFlags = GetThread_CrossThreadFlags(Thread);
RtlInterlockedSetBitsDiscardReturn(CrossThreadFlags, 0x80);
}
}
else {
RemoveEntryList(&DebugEvent->EventList);
InsertTailList(&TempList, &DebugEvent->EventList);
}
if (DebugEvent->Flags & DEBUG_EVENT_RELEASE) {
DebugEvent->Flags &= ~DEBUG_EVENT_RELEASE;
PVOID RundownProtect = GetThread_RundownProtect(Thread);
ExReleaseRundownProtection((PEX_RUNDOWN_REF)RundownProtect);
}
}
}
ExReleaseFastMutex(&DebugObject->Mutex);
if (GlobalHeld)
{
ExReleaseFastMutex(DbgkpProcessDebugPortMutex);
}
if (LastThread != NULL) {
ObDereferenceObject(LastThread);
}
while (!IsListEmpty(&TempList)) {
Entry = RemoveHeadList(&TempList);
DebugEvent = CONTAINING_RECORD(Entry, DEBUG_EVENT, EventList);
DbgkpWakeTarget(DebugEvent);
}
//������������BeingDebugged��
//if (NT_SUCCESS(Status)) {
// DbgkpMarkProcessPeb(Process);
//}
return Status;
}
KiDispatchException
对于被调试调试器来说，真正要hook的只有KiDispatchException，和DbgkForwardException，因为只有这里会用上debugport，向调试器发生异常，比如int3。
当触发异常时会来到KiDispatchException，此处有：
if ( Process->DebugPort )
{
if ( (v5 & 1) != 0 )
{
if ( (Thread->CrossThreadFlags & 4) == 0 )
{
memset(&APIMSG, 0, 0x40u);
APIMSG.u.Exception.ExceptionRecord.ExceptionRecord = (_EXCEPTION_RECORD *)Thread->Win32StartAddress;
APIMSG.h.u1.Length = 0x400018;
APIMSG.h.u2.ZeroInit = 8;
APIMSG.ApiNumber = DbgKmCreateThreadApi;
DbgkpSendApiMessage(Process, 1, &APIMSG);
}
}
else
假如异常发生且Process->DebugPort有值，才会发给调试器，但是显然我们没有，所以这里需要寻找, 没找到跳回原来的KiDispatchException即可。
VOID KiDispatchException(
PEXCEPTION_RECORD ExceptionRecord,
void* ExceptionFrame,
PKTRAP_FRAME TrapFrame,
KPROCESSOR_MODE PreviousMode,
BOOLEAN FirstChance)
{
if (PreviousMode != KernelMode)
{
BOOLEAN isDebug = FALSE;
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->TargetProcessId == PsGetCurrentProcessId())
{
isDebug = TRUE;
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
if (isDebug)
{
BOOLEAN Wow64ExceptionCode = FALSE;
if ((TrapFrame->SegCs & 0xfff8) == KGDT64_R3_CMCODE)
{
switch (ExceptionRecord->ExceptionCode)
{
case STATUS_BREAKPOINT:
ExceptionRecord->ExceptionCode = STATUS_WX86_BREAKPOINT;
Wow64ExceptionCode = TRUE;
break;
case STATUS_SINGLE_STEP:
ExceptionRecord->ExceptionCode = STATUS_WX86_SINGLE_STEP;
Wow64ExceptionCode = TRUE;
break;
}
}
if (DbgkForwardException(ExceptionRecord, TRUE, FALSE))
{
return;
}
if (Wow64ExceptionCode)
{
switch (ExceptionRecord->ExceptionCode)
{
case STATUS_WX86_BREAKPOINT:
ExceptionRecord->ExceptionCode = STATUS_BREAKPOINT;
break;
case STATUS_WX86_SINGLE_STEP:
ExceptionRecord->ExceptionCode = STATUS_SINGLE_STEP;
break;
}
}
}
}
OrignalKiDispatchException(ExceptionRecord, ExceptionFrame, TrapFrame, PreviousMode, FirstChance);
return;
}
DbgkForwardException
然后来到DbgkForwardException，这里还是从g_Debuginfo里面找DEBUG_OBJECT，同时把检测ThreadHideFromDebugger的地方删掉就行了。
BOOLEAN DbgkForwardException(
PEXCEPTION_RECORD ExceptionRecord,
BOOLEAN DebugException,
BOOLEAN SecondChance)
{
DbgPrintEx(77, 0, "[DbgHook] DbgkForwardException enter pid=%lu DebugException=%d ExceptionCode=0x%08X\n", (ULONG)PsGetCurrentProcessId(), DebugException, ExceptionRecord->ExceptionCode);
NTSTATUS st;
PEPROCESS Process;
PVOID ExceptionPort;
PDEBUG_OBJECT DebugObject;
BOOLEAN bLpcPort;
DBGKM_APIMSG m;
PDBGKM_EXCEPTION args;
RtlZeroMemory(&m, sizeof(m));
DebugObject = NULL;
ExceptionPort = NULL;
bLpcPort = FALSE;
args = &m.u.Exception;
m.h.u1.Length = 0xD000A8;
m.h.u2.ZeroInit = 8;
m.ApiNumber = DbgKmExceptionApi;
Process = (PEPROCESS)PsGetCurrentProcess();
if (DebugException == TRUE)
{
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->TargetProcessId == PsGetCurrentProcessId())
{
DebugObject = pDebuginfo->DebugObject;
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
}
else
{
ExceptionPort = PsCaptureExceptionPort(Process);
m.h.u2.ZeroInit = 0x7;
bLpcPort = TRUE;
}
DbgPrintEx(77, 0, "[DbgHook] DbgkForwardException DebugObject=%p ExceptionPort=%p\n", DebugObject, ExceptionPort);
if ((ExceptionPort == NULL && DebugObject == NULL) &&
DebugException == TRUE)
{
return FALSE;
}
args->ExceptionRecord = *ExceptionRecord;
args->FirstChance = !SecondChance;
if (bLpcPort == FALSE)
{
#ifdef WIN7
st = DbgkpSendApiMessage(DebugException, &m);
#else
st = DbgkpSendApiMessage(PsGetThreadProcess(KeGetCurrentThread()), DebugException, &m);
#endif
}
else if (ExceptionPort) {
st = DbgkpSendApiMessageLpc(&m, ExceptionPort, DebugException);
ObfDereferenceObject(ExceptionPort);
}
else {
m.ReturnedStatus = DBG_EXCEPTION_NOT_HANDLED;
st = STATUS_SUCCESS;
}
DbgPrintEx(77, 0, "[DbgHook] DbgkForwardException st=0x%08X ReturnedStatus=0x%08X\n", st, m.ReturnedStatus);
if (NT_SUCCESS(st))
{
st = m.ReturnedStatus;
if (m.ReturnedStatus == DBG_EXCEPTION_NOT_HANDLED)
{
if (DebugException == TRUE)
{
DbgPrintEx(77, 0, "[DbgHook] DbgkForwardException return FALSE (not handled)\n");
return FALSE;
}
st = DbgkpSendErrorMessage(ExceptionRecord, 0, &m);
}
}
DbgPrintEx(77, 0, "[DbgHook] DbgkForwardException return %d\n", NT_SUCCESS(st));
return NT_SUCCESS(st);
}
此时附加调试就hook完毕。
创建调试重构
请先食用：https://qmeimei10086.github.io/2026/08/14/win%E5%86%85%E6%A0%B8%E8%B0%83%E8%AF%95%E5%8E%9F%E7%90%86%E6%8F%AD%E7%A7%985-%E5%88%9B%E5%BB%BA%E8%B0%83%E8%AF%95/
注意：创建调试hook的都是高频使用函数，请不要使用dbgprint了，而且有概率会在hook时就被pg发现从而蓝屏。
创建调试顾名思义会创建进程，最终会走到NtCreateUserProcess
核心流程如下： 因为太长了，所以我们先完全调用原版创建流程。
status = OrignalNtCreateUserProcess(…);然后检查当前进程是否存在调试记录：
if (pDebuginfo->SourceProcessId == PsGetCurrentProcessId())
{
TmpDebuginfo = pDebuginfo;
isDebug = TRUE;
}
这里的含义是： 当前进程 PID == 调试器 PID
如果成立，就认为这是“由当前调试器创建的进程”。
接着根据返回的进程句柄获取新进程对象：
status = ObReferenceObjectByHandle(
*ProcessHandle,
0x0400,
*PsProcessType,
ExGetPreviousMode(),
(void**)&temp_process,
NULL);
然后执行以下额外逻辑。
记录新创建进程的 PID
HANDLEtarget_pid = PsGetProcessId(temp_process);
TmpDebuginfo->TargetProcessId = target_pid;
它把调试器 PID -> 新创建进程 PID 写入g_Debuginfo
因此后续事件可以通过：TargetProcessId -> DebugObject -> 找到调试对象。
清除新进程的 DebugPort
PVOID DebugPort__ = GetProcess_DebugPort(temp_process);
if (*(ULONG64*)(DebugPort__) != 0)
{
*(ULONG64*)(DebugPort__) = 0;
}
这一步是当前 hook 最重要的行为：原版创建流程可能已经设置(如果在creatprocess里携带了相应信息)：
new_process->DebugPort = DebugObject
当前 hook 随后改回：
new_process->DebugPort = NULL
也就是说，原版流程先建立真实调试关联，你的 hook 在返回前把它隐藏掉，再依赖自己的 g_Debuginfo 路由后续事件。
更新 PEB 的 BeingDebugged DbgkpMarkProcessPeb(temp_process)可能会置位Peb->BeingDebugged，我们直接让PEB.BeingDebugged = FALSE
清除 NO_DEBUG_INHERIT
PVOIDFlags = GetProcess_ProcessFlags(temp_process);
*(PULONG64)Flags &= ~PS_PROCESS_FLAGS_NO_DEBUG_INHERIT;
这一步清除：PS_PROCESS_FLAGS_NO_DEBUG_INHERIT
目的是让目标进程后续创建的子进程继续继承调试关系，或者避免该标志阻止调试事件继承。
最终代码：
NTSTATUS NtCreateUserProcess(
PHANDLE ProcessHandle,
PETHREAD ThreadHandle,
ACCESS_MASK ProcessDesiredAccess,
ACCESS_MASK ThreadDesiredAccess,
PVOID ProcessObjectAttributes,
PVOID ThreadObjectAttributes,
ULONG ProcessFlags,
ULONG ThreadFlags,
PVOID ProcessParameters,
void* CreateInfo,
void* AttributeList)
{
NTSTATUSstatus =0;
status = OrignalNtCreateUserProcess(ProcessHandle,
ThreadHandle,
ProcessDesiredAccess,
ThreadDesiredAccess,
ProcessObjectAttributes,
ThreadObjectAttributes,
ProcessFlags,
ThreadFlags,
ProcessParameters,
CreateInfo,
AttributeList);
if (NT_SUCCESS(status) && ProcessHandle != NULL)
{
PDebugInfomationTmpDebuginfo = NULL;
BOOLEANisDebug = FALSE;
KIRQLOldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRYpListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomationpDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->SourceProcessId == PsGetCurrentProcessId())
{
TmpDebuginfo = pDebuginfo;
isDebug = TRUE;
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
if (isDebug)
{
PEPROCESStemp_process = NULL;
status = ObReferenceObjectByHandle(*ProcessHandle, 0x0400, *PsProcessType, ExGetPreviousMode(), (void**)&temp_process, NULL);
if (!NT_SUCCESS(status))
return status;
PVOIDDebugPort__ = GetProcess_DebugPort(temp_process);
if (*(ULONG64*)(DebugPort__) != 0)
{
HANDLEtarget_pid = PsGetProcessId(temp_process);
TmpDebuginfo->TargetProcessId = target_pid;
*(ULONG64*)(DebugPort__) = 0;
DbgkpMarkProcessPeb(temp_process);
PVOIDFlags = GetProcess_ProcessFlags(temp_process);
*(PULONG64)Flags &= ~PS_PROCESS_FLAGS_NO_DEBUG_INHERIT;
}
}
}
return status;
}
DbgkMapViewOfSection 和 DbgkUnMapViewOfSection
这几个函数可能会在加载dll比如loadlibraryA之类的地方被调用，如果检测到有调试对象，就发送模块加载的信息。
但是显然我们没有调试对象，因此逻辑如下：
通过当前进程 PID -> g_Debuginfo.TargetProcessId -> DebugObject
如果查不到： if (!DebugObject) return;
也就是直接丢弃模块加载事件。
VOID DbgkMapViewOfSection(
PEPROCESS Process,
PVOID SectionObject,
PVOID BaseAddress
){
PTEB Teb;
HANDLE hFile;
DBGKM_APIMSG ApiMsg;
PEPROCESS CurrentProcess;
PETHREAD CurrentThread;
PIMAGE_NT_HEADERS pImageHeader;
hFile = NULL;
CurrentProcess = (PEPROCESS)PsGetCurrentProcess();
CurrentThread = (PETHREAD)PsGetCurrentThread();
if (ExGetPreviousMode() == KernelMode)
return;
PDEBUG_OBJECT DebugObject = NULL;
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->TargetProcessId == PsGetCurrentProcessId())
{
DebugObject = pDebuginfo->DebugObject;
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
if (!DebugObject)
return;
Teb = (PTEB)PsGetThreadTeb(CurrentThread);
if (Teb != NULL && Process == CurrentProcess)
{
if (!DbgkpSuppressDbgMsg(Teb))
{
ApiMsg.u.LoadDll.NamePointer = Teb->NtTib.ArbitraryUserPointer;
}
else {
return;
}
}
else {
ApiMsg.u.LoadDll.NamePointer = NULL;
}
hFile = DbgkpSectionToFileHandle(SectionObject);
ApiMsg.u.LoadDll.FileHandle = hFile;
ApiMsg.u.LoadDll.BaseOfDll = BaseAddress;
ApiMsg.u.LoadDll.DebugInfoFileOffset = 0;
ApiMsg.u.LoadDll.DebugInfoSize = 0;
_try{
pImageHeader = RtlImageNtHeader(BaseAddress);
if (pImageHeader != NULL)
{
ApiMsg.u.LoadDll.DebugInfoFileOffset = pImageHeader->FileHeader.PointerToSymbolTable;
ApiMsg.u.LoadDll.DebugInfoSize = pImageHeader->FileHeader.NumberOfSymbols;
}
}_except(EXCEPTION_EXECUTE_HANDLER) {
ApiMsg.u.LoadDll.DebugInfoFileOffset = 0;
ApiMsg.u.LoadDll.DebugInfoSize = 0;
ApiMsg.u.LoadDll.NamePointer = NULL;
}
ApiMsg.h.u1.Length = 0x500028;
ApiMsg.h.u2.ZeroInit = 8;
ApiMsg.ApiNumber = DbgKmLoadDllApi;
#ifdef WIN7
DbgkpSendApiMessage(0x1, &ApiMsg);
#else
DbgkpSendApiMessage(PsGetThreadProcess(KeGetCurrentThread()), 0x1, &ApiMsg);
#endif
if (ApiMsg.u.LoadDll.FileHandle != NULL)
{
ObCloseHandle(ApiMsg.u.LoadDll.FileHandle, KernelMode);
}
}
VOID DbgkUnMapViewOfSection(
PEPROCESS Process,
PVOID BaseAddress){
PTEB Teb;
DBGKM_APIMSG ApiMsg;
PEPROCESS CurrentProcess;
PETHREAD CurrentThread;
CurrentProcess = (PEPROCESS)PsGetCurrentProcess();
CurrentThread = (PETHREAD)PsGetCurrentThread();
if (ExGetPreviousMode() == KernelMode)
return;
PDEBUG_OBJECT DebugObject = NULL;
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->TargetProcessId == PsGetCurrentProcessId())
{
DebugObject = pDebuginfo->DebugObject;
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
if (!DebugObject)
return;
//����ʡ����ϵͳ���̺ҿ����̵��ж�
Teb = (PTEB)PsGetThreadTeb(CurrentThread);
if (Teb != NULL && Process == CurrentProcess)
{
if (DbgkpSuppressDbgMsg(Teb))
{
return;
}
}
ApiMsg.u.UnloadDll.BaseAddress = BaseAddress;
ApiMsg.h.u1.Length = 0x380010;
ApiMsg.h.u2.ZeroInit = 8;
ApiMsg.ApiNumber = DbgKmUnloadDllApi;
#ifdef WIN7
DbgkpSendApiMessage(0x1, &ApiMsg);
#else
DbgkpSendApiMessage(PsGetThreadProcess(KeGetCurrentThread()), 0x1, &ApiMsg);
#endif
}
DbgkCreateThread
通过前面创建调试的知识，我们知道创建好的进程第一次被调度会执行PspUserThreadStartup，进而来到DbgkCreateThread，这里就是第一次向调试器发送事件的地方，也是断下来的地方。
这里我们的处理也很简单，还是通过g_Debuginfo找到调试对象，然后发送调试事件，然后直接在此调用原版的DbgkCreateThread，因为没有debugport，就不会再发一次，而且会帮我们完成剩下的工作
VOID DbgkCreateThread(
PETHREAD Thread)
{
PVOID Port;
DBGKM_APIMSG m;
PDBGKM_CREATE_THREAD CreateThreadArgs;
PDBGKM_CREATE_PROCESS CreateProcessArgs;
PEPROCESS Process = PsGetCurrentProcess();
HANDLE ProcessId = PsGetCurrentProcessId();
PDBGKM_LOAD_DLL LoadDllArgs;
NTSTATUS Status;
OBJECT_ATTRIBUTES Obja;
IO_STATUS_BLOCK IoStatusBlock;
PIMAGE_NT_HEADERS NtHeaders;
PTEB Teb;
RtlZeroMemory(&m, sizeof(m));
BOOLEAN isDebug = FALSE;
KIRQL OldIrql = { 0 };
KeAcquireSpinLock(&g_DebugLock, &OldIrql);
for (PLIST_ENTRY pListEntry = g_Debuginfo.List.Flink; pListEntry != &g_Debuginfo.List; pListEntry = pListEntry->Flink)
{
PDebugInfomation pDebuginfo = CONTAINING_RECORD(pListEntry, DebugInfomation, List);
if (pDebuginfo->TargetProcessId == PsGetCurrentProcessId())
{
isDebug = TRUE;
break;
}
}
KeReleaseSpinLock(&g_DebugLock, OldIrql);
if (isDebug)
{
PVOID ProFlag = GetProcess_ProcessFlags(Process);
ULONG OldFlags = RtlInterlockedSetBits(ProFlag, 0x400001); //RtlInterlockedSetBits(&Process->Flags, 0x400001);֮ǰ���bug��win7�ͻ���֣����Ұ���
if ((OldFlags & PS_PROCESS_FLAGS_CREATE_REPORTED) == 0)
{
CreateThreadArgs = &m.u.CreateProcessInfo.InitialThread;
CreateThreadArgs->SubSystemKey = 0;
CreateProcessArgs = &m.u.CreateProcessInfo;
CreateProcessArgs->SubSystemKey = 0;
CreateProcessArgs->FileHandle = DbgkpSectionToFileHandle((PVOID) * (PULONG64)GetProcess_SectionObject(Process));
CreateProcessArgs->BaseOfImage = (PVOID) * (PULONG64)GetProcess_SectionBaseAddress(Process);
CreateThreadArgs->StartAddress = NULL;
CreateProcessArgs->DebugInfoFileOffset = 0;
CreateProcessArgs->DebugInfoSize = 0;
__try
{
NtHeaders = RtlImageNtHeader((PVOID) * (PULONG64)GetProcess_SectionBaseAddress(Process));
if (NtHeaders)
{
if (PsGetProcessWow64Process(Process) != NULL)
{
CreateThreadArgs->StartAddress = UlongToPtr(DBGKP_FIELD_FROM_IMAGE_OPTIONAL_HEADER((PIMAGE_NT_HEADERS32)NtHeaders, ImageBase) + DBGKP_FIELD_FROM_IMAGE_OPTIONAL_HEADER((PIMAGE_NT_HEADERS32)NtHeaders, AddressOfEntryPoint));
}
else {
CreateThreadArgs->StartAddress = (PVOID)(DBGKP_FIELD_FROM_IMAGE_OPTIONAL_HEADER(NtHeaders, ImageBase) + DBGKP_FIELD_FROM_IMAGE_OPTIONAL_HEADER(NtHeaders, AddressOfEntryPoint));
}
CreateProcessArgs->DebugInfoFileOffset = NtHeaders->FileHeader.PointerToSymbolTable;
CreateProcessArgs->DebugInfoSize = NtHeaders->FileHeader.NumberOfSymbols;
}
}
__except (EXCEPTION_EXECUTE_HANDLER)
{
CreateThreadArgs->StartAddress = NULL;
CreateProcessArgs->DebugInfoFileOffset = 0;
CreateProcessArgs->DebugInfoSize = 0;
}
m.h.u1.Length = 0x600038;
m.h.u2.ZeroInit = 8;
m.ApiNumber = DbgKmCreateProcessApi;
#ifdef WIN7
DbgkpSendApiMessage(FALSE, &m);
#else
DbgkpSendApiMessage(Process, FALSE, &m);
#endif
if (CreateProcessArgs->FileHandle != NULL) {
ObCloseHandle(CreateProcessArgs->FileHandle, KernelMode);
}
DbgkSendSystemDllMessages(0, 0, &m);
}
else
{
CreateThreadArgs = &m.u.CreateThread;
CreateThreadArgs->SubSystemKey = 0;
CreateThreadArgs->StartAddress = (PVOID) * (PULONG64)GetThread_StartAddress(Thread);
m.h.u1.Length = 0x400018;
m.h.u2.ZeroInit = 8;
m.ApiNumber = DbgKmCreateThreadApi;
#ifdef WIN7
DbgkpSendApiMessage(TRUE, &m);
#else
DbgkpSendApiMessage(Process, TRUE, &m);
#endif
}
}
OriginalDbgkCreateThread(Thread);
}
#
成品
因为我的电脑是amd的，而且目前市面上开源svm调试器比较少，所以基于npt hook写了一个。
效果：

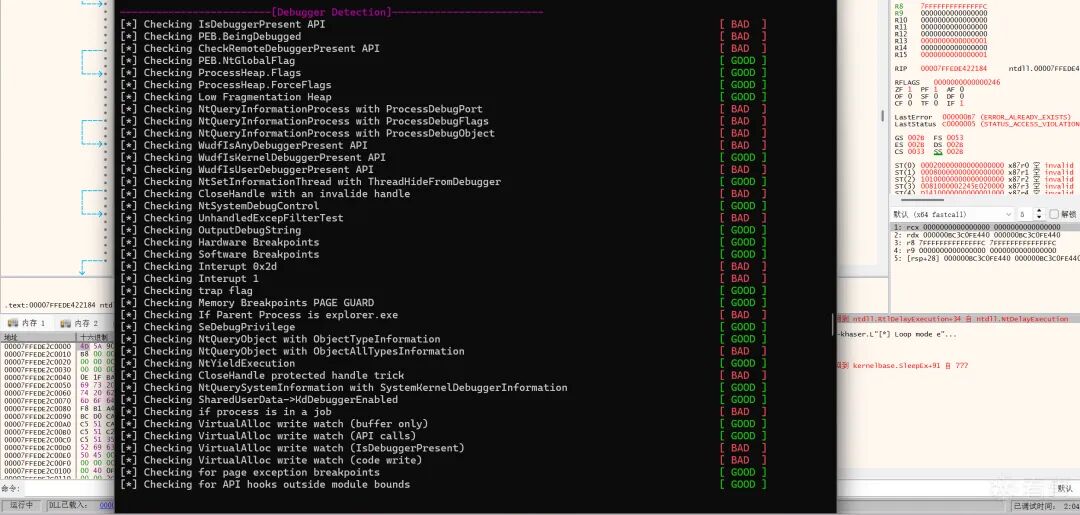

这是普通调试器：

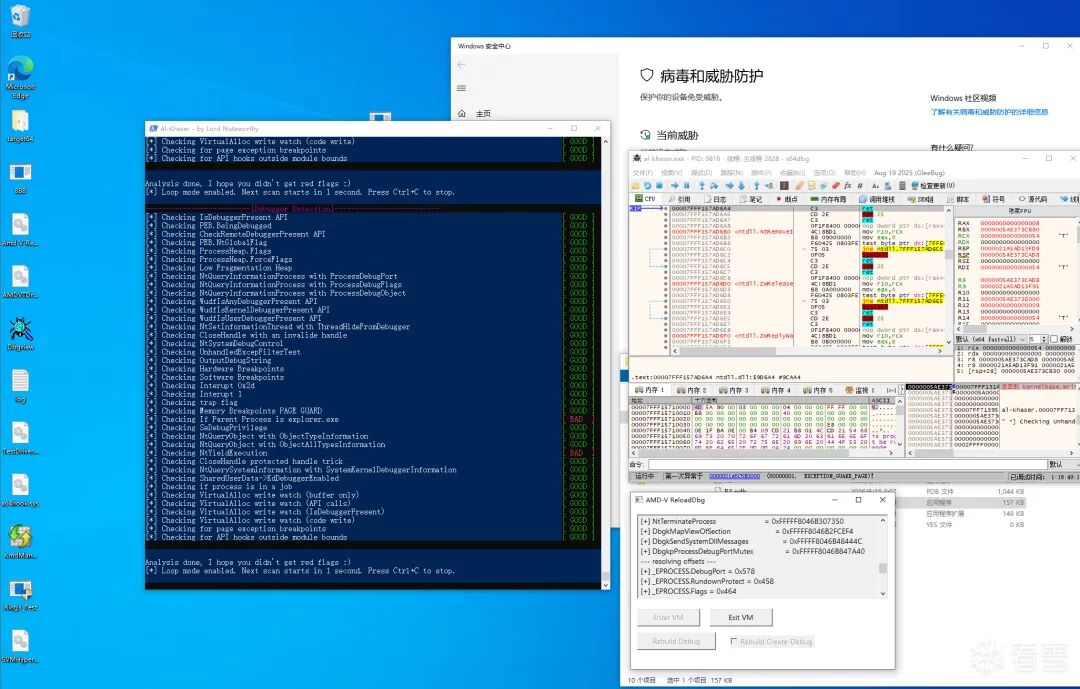

经过测试可以调试全版本启动了反调试的vmp
视频演示：https://b23.tv/8Jo38Bh
项目地址：https://github.com/Qmeimei10086/svm-dbg
看雪ID：Qmeimei10086
https://bbs.kanxue.com/user-home-1055387.htm
*本文为看雪论坛优秀文章，由 Qmeimei10086 原创，转载请注明来自看雪社区
9月10日【议题征集】截止
往期推荐
App 抽取壳的内存脱壳与请求签名逆向
ART 执行链与 Nterp：解析 FART Android12‑16 失效问题
Hitcon-2016-babytrick 解题报告
Windows调试体系揭秘
RP2350 硬件固化 CVE‑2022‑38694：突破 Unisoc BSP 安全启动链
球分享
球点赞
球在看
点击阅读原文查看更多
免责声明：
本文所载程序、技术方法仅面向合法合规的安全研究与教学场景，旨在提升网络安全防护能力，具有明确的技术研究属性。
任何单位或个人未经授权，将本文内容用于攻击、破坏等非法用途的，由此引发的全部法律责任、民事赔偿及连带责任，均由行为人独立承担，本站不承担任何连带责任。
本站内容均为技术交流与知识分享目的发布，若存在版权侵权或其他异议，请通过邮件联系处理，具体联系方式可点击页面上方的联系我。
本文转载自：看雪学苑 Qmeimei10086 Qmeimei10086《VT调试器原理揭秘–DebugPort转移与重建调试体系》
版权声明
本站仅做备份收录，仅供研究与教学参考之用。
读者将信息用于其他用途的，全部法律及连带责任由读者自行承担，本站不承担任何责任。
评论
